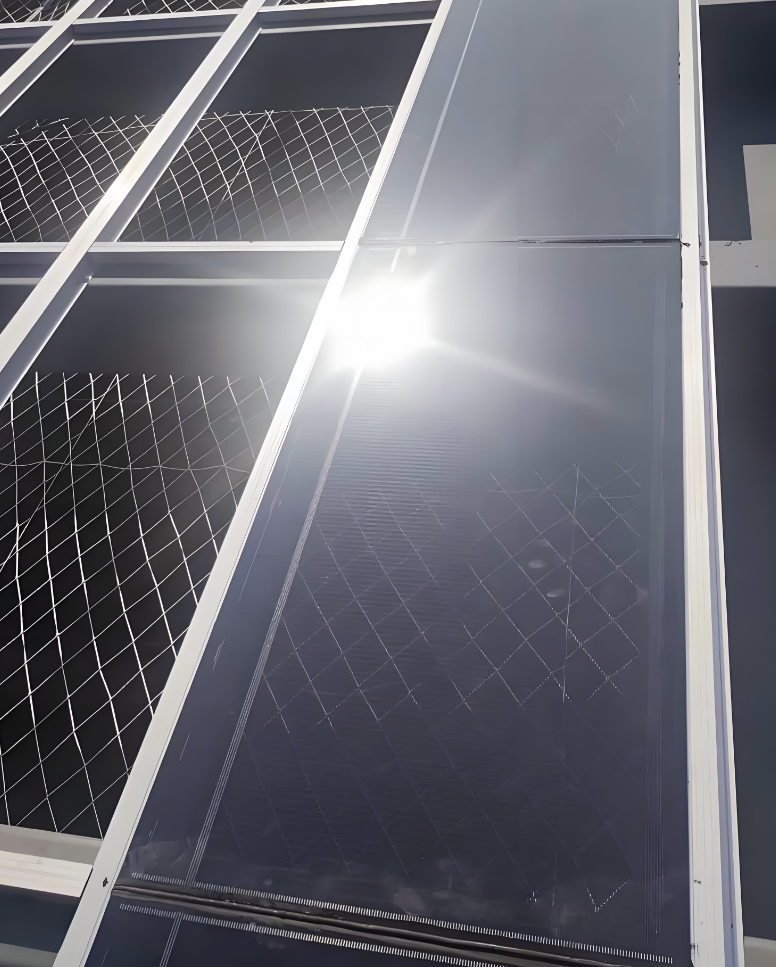

The core advantage of this product is its high visible light transmittance of 40%, which provides sufficient natural lighting while generating electricity, solving the common pain point of natural light occlusion in traditional photovoltaic walls. The CdTe thin-film technology performs better in low-light environments compared to crystalline silicon modules, maintaining stable power generation on cloudy days. The ultra-clear glass minimizes light reflection, improving indoor visual comfort. The stick-on installation system simplifies construction, reducing on-site installation time by 40% compared to conventional curtain wall systems. It also meets the energy-saving requirements of green building certifications like LEED.
Standard panel dimensions are 1500mm x 2000mm, with custom sizes available. Total thickness is 22mm (6mm ultra-clear tempered glass + 12mm air layer + 4mm CdTe PV layer + backsheet). Weight is 24kg per square meter. Electrical parameters include open-circuit voltage 22.6V, short-circuit current 4.1A, and peak power 85W per standard panel. Pre-attached aluminum alloy mounting strips are included for quick on-site assembly.

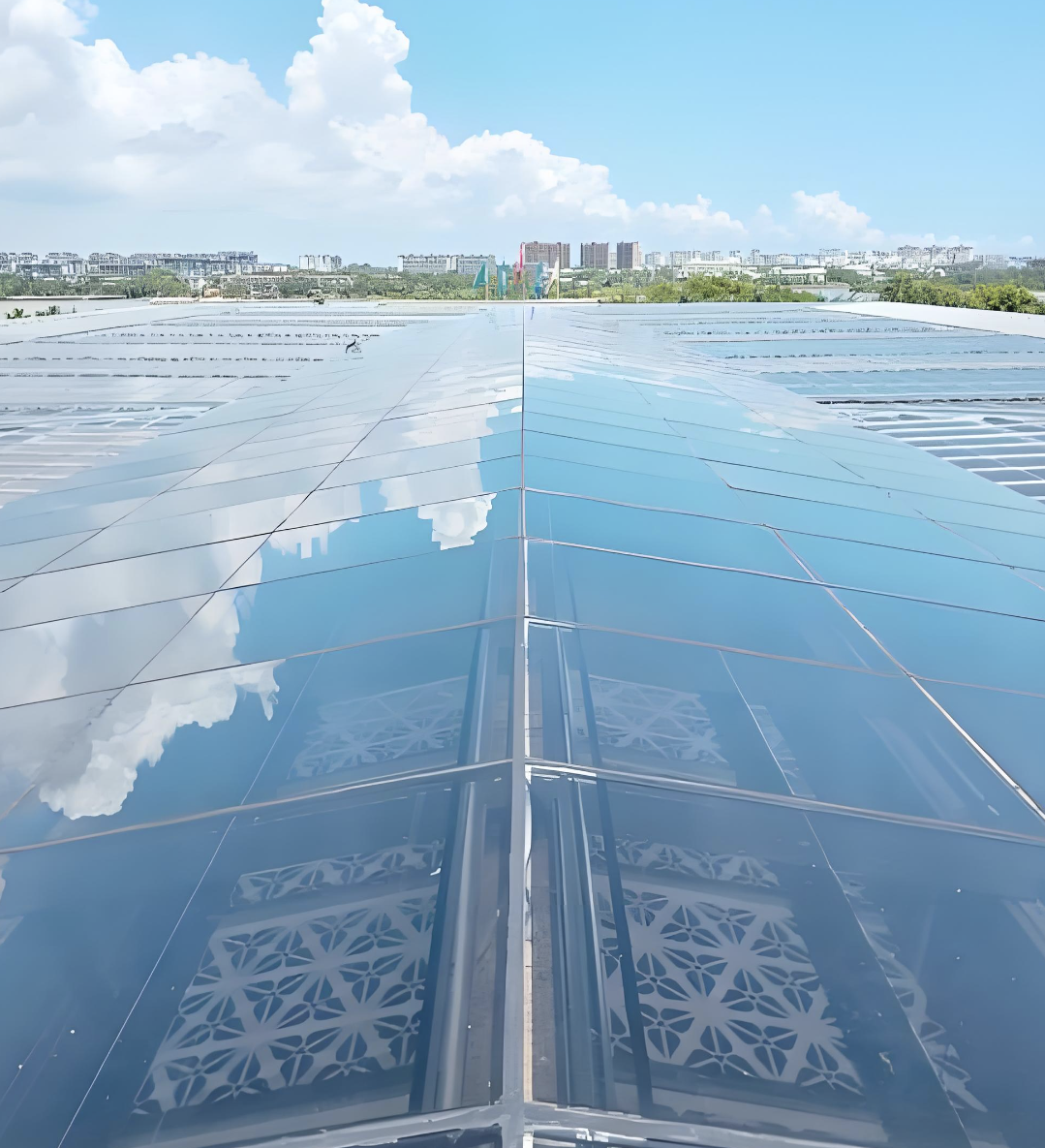

Ideal for sports stadiums, botanical gardens, cultural exhibition centers, airport waiting halls and commercial buildings with large glass facades. It supports natural lighting design while generating clean energy, helping projects meet green building certification standards. It is also suitable for retrofit projects of existing glass curtain walls to add power generation capability without sacrificing natural lighting.
