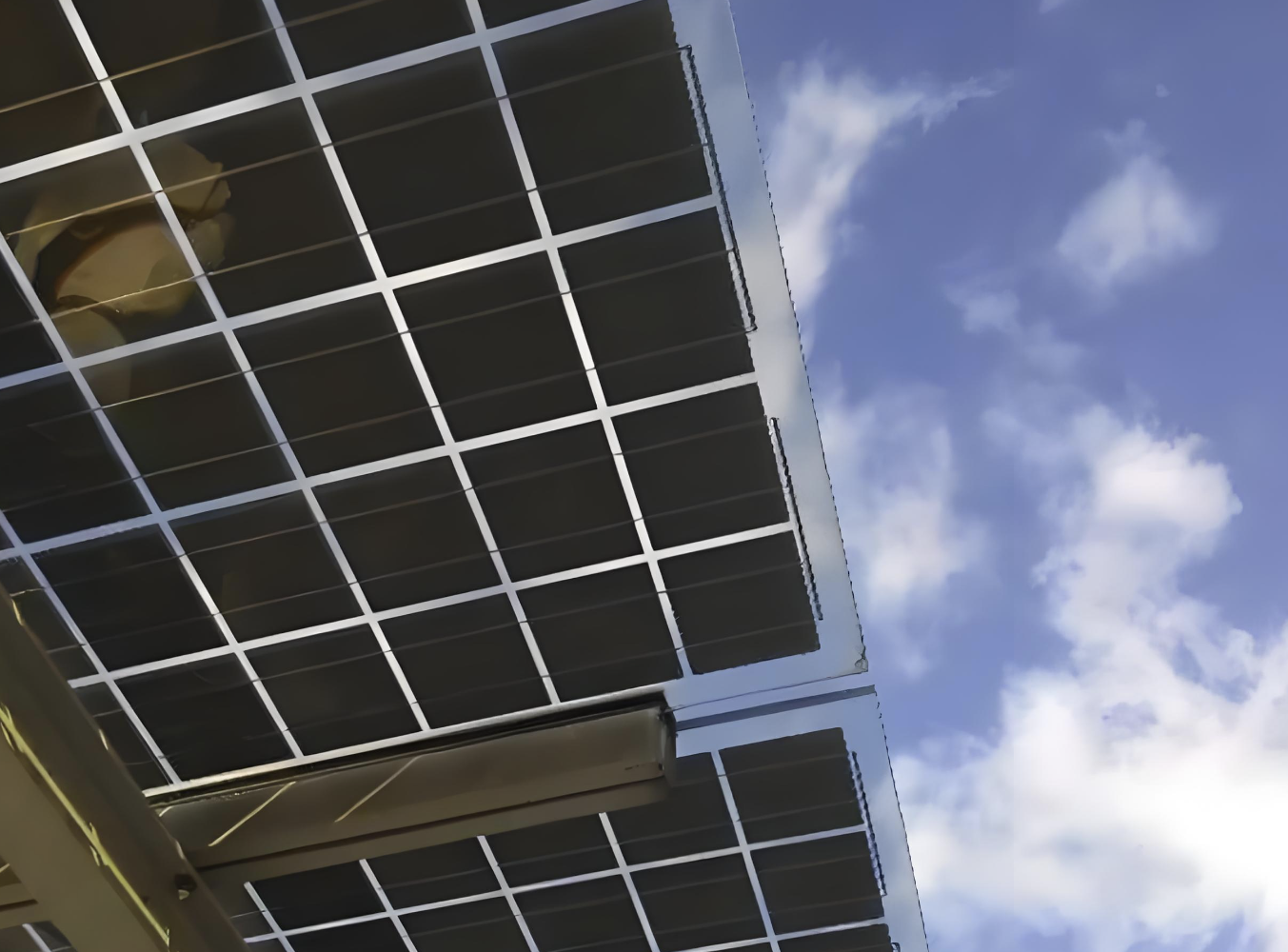

This product adopts unitized modular design, which is convenient for quick installation. The shading angle can be adjusted to adapt to different solar elevation angles, improving shading efficiency. The combination of aluminum plate and photovoltaic modules not only effectively blocks solar radiation, but also realizes solar power generation, with a conversion efficiency of 21.0%. The IP66 waterproof rating adapts to outdoor public areas, and the thermal break aluminum alloy frame improves heat insulation performance. The 25-year service life meets the safety usage requirements of public buildings, solving the pain point that traditional sunshade facilities only have sunshade functions and realizing functional upgrading.
Each single panel has a size of 1000mm × 3000mm, with a total thickness of 17.52mm, and the weight per square meter is 30kg. It uses PERC monocrystalline silicon battery sheets, with an open-circuit voltage of 42.5V, short-circuit current of 9.5A, and rated power of about 310W per square meter. The shading coefficient SC reaches 0.25, effectively blocking more than 80% of solar radiation heat. It is equipped with adjustable mounting brackets, and the shading angle can be adjusted from 0° to 60°, adapting to the solar illumination needs of different seasons. It has passed CE certification, meeting the safety standards of European public buildings.

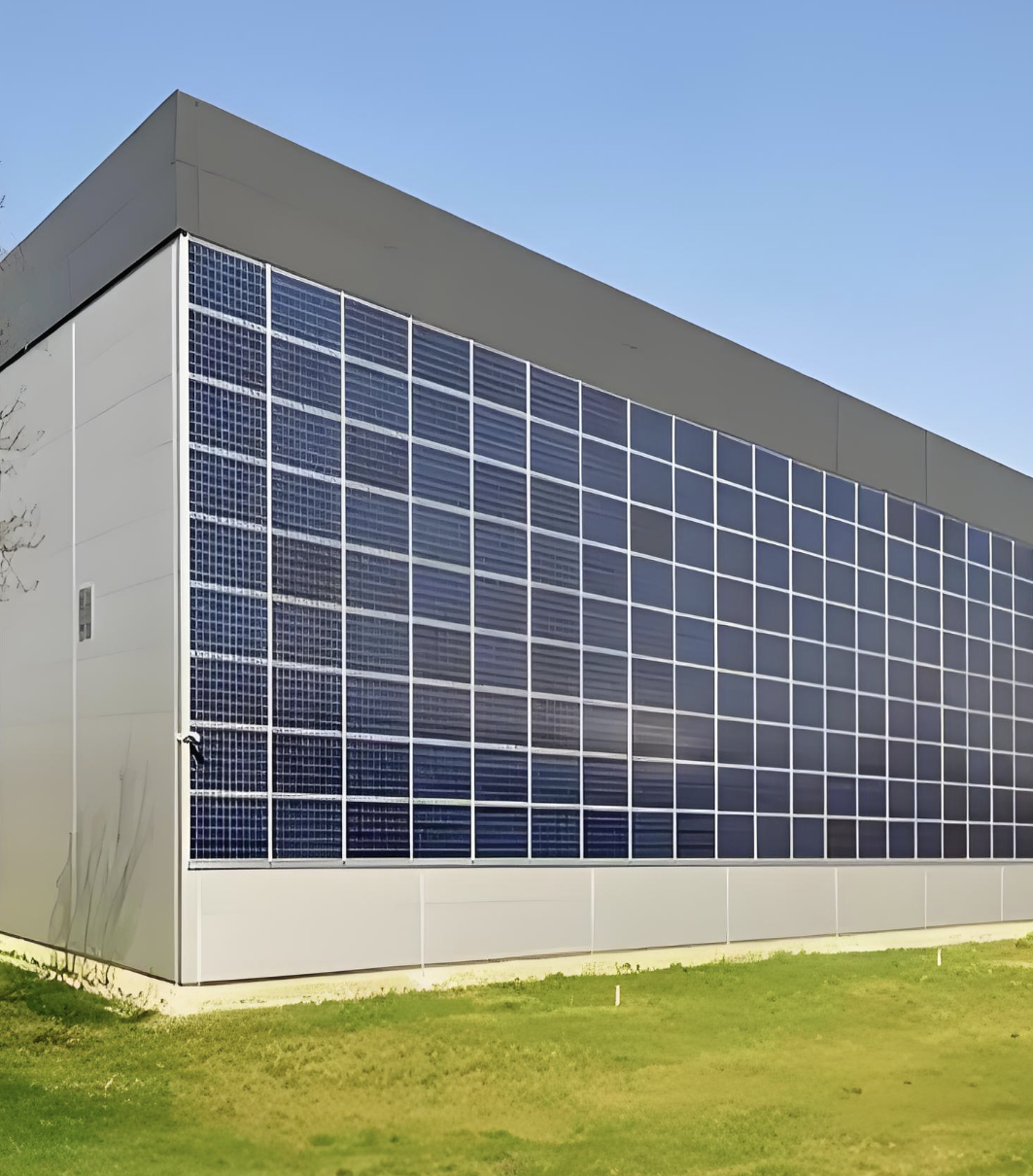

It is suitable for the entrance sunshade of rail transit stations, the outdoor square sunshade of large commercial complexes, the sunshade shed of outdoor parking lots and the sunshade facilities of public leisure spaces. It provides sunshade and sun protection for the lower area, and converts solar energy into electricity to supply surrounding street lamps, charging piles and public lighting, reducing the grid energy consumption of public spaces. It improves the technological sense and practicality of public spaces, adapting to various outdoor public building scenarios.
