This product stands out for its high conversion efficiency of 22.5%, which maximizes power generation in limited wall space. The double-silver Low-E glass not only blocks 90% of infrared heat but also reduces indoor cooling loads by 30% compared to traditional curtain walls. The hidden frame installation design creates a seamless exterior appearance, enhancing the architectural aesthetic. The IP68 waterproof rating ensures reliable performance in heavy rain and harsh outdoor environments, while the Class A fire rating meets the fire safety standards of most global commercial building codes. It also solves the pain point of high energy costs for commercial buildings by combining power generation and thermal insulation.
Standard panel dimensions are 1200mm x 2400mm, with custom sizes available upon request. Total panel thickness is 28mm (10mm tempered glass + 8mm air layer + 8mm tempered glass + PV layer + 2mm backsheet). Weight is 32kg per square meter. Mounting hardware includes stainless steel fasteners and aluminum alloy brackets, compatible with most standard curtain wall installation systems. Electrical parameters include open-circuit voltage 38.4V, short-circuit current 9.2A, and peak power 320W per standard panel.

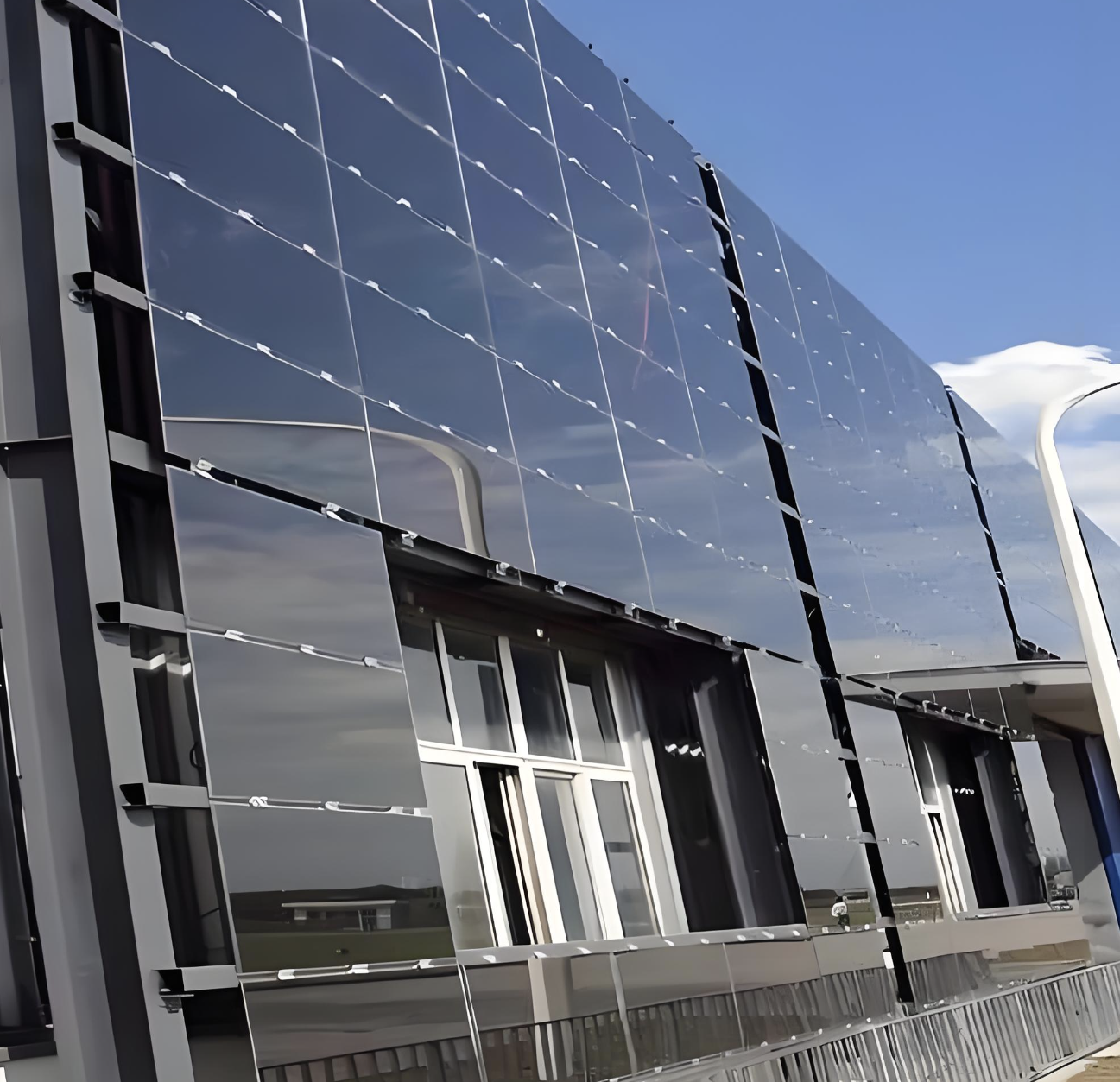

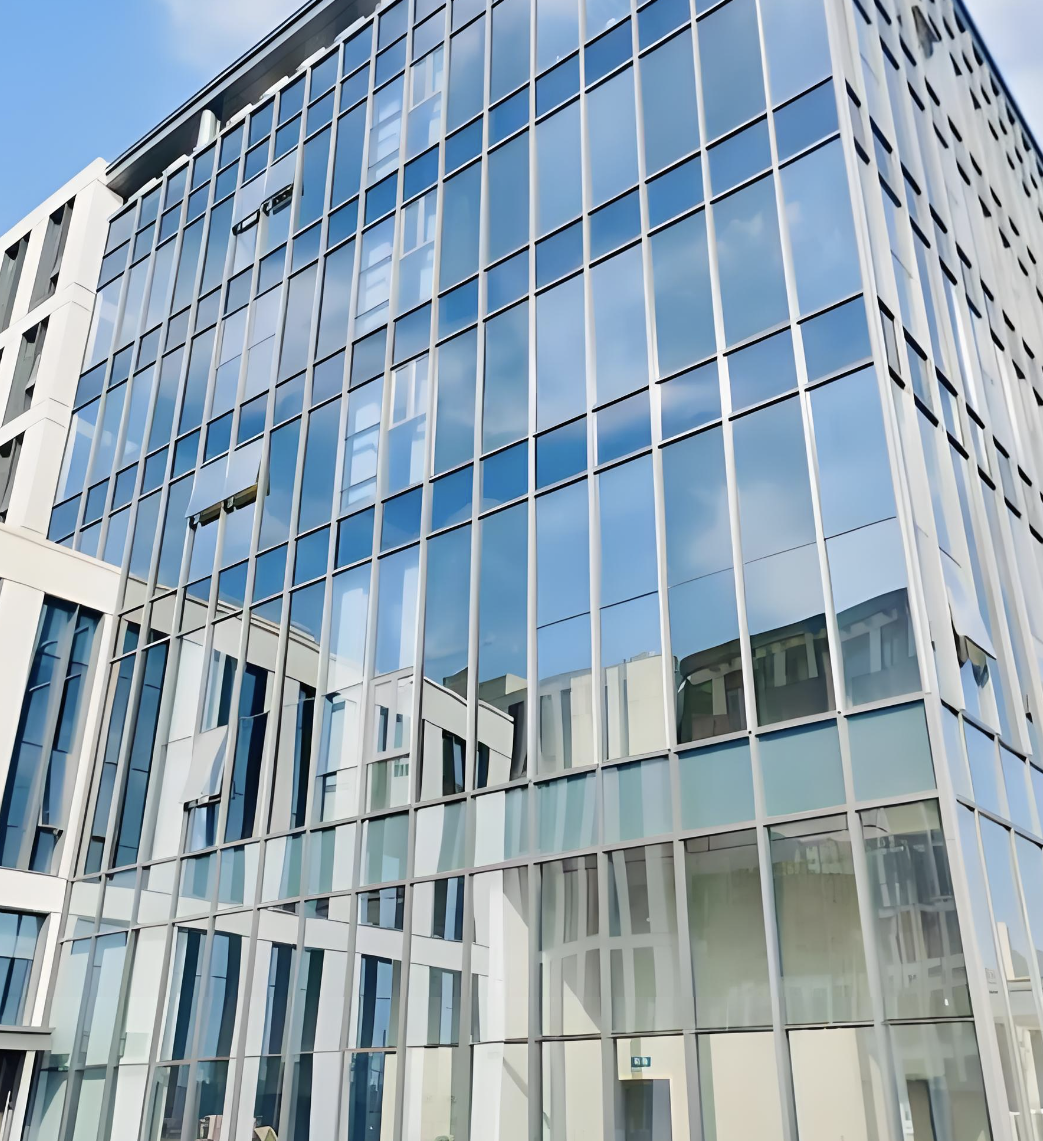

Suitable for high-rise office buildings, urban commercial complexes, airport terminals and train stations. It is ideal for building envelope renovation projects and new commercial construction, providing clean energy while improving the architectural appearance. It can be integrated with building energy management systems to monitor power generation data in real time, helping building owners track energy savings and return on investment.
