This product is equipped with 23.1% high-efficiency monocrystalline PERC photovoltaic modules, which have excellent power generation efficiency, and the ultra-white tempered glass has a light transmittance of over 92%, maximizing solar energy absorption. The built-in intelligent monitoring system can collect real-time power generation data of each component, generate power generation reports, and send fault early warning information through the 4G module, allowing managers to carry out remote maintenance, reducing the cost of on-site maintenance. The frame is made of 6063 anti-corrosion aluminum alloy, which has good corrosion resistance and structural stability, extending the service life of the product. It also supports access to the building's energy management system, realizing unified scheduling of power generation and consumption.
The overall panel thickness is 8mm + 1.52mm PVB + 8mm tempered glass, with a total weight of 22kg per square meter. The working temperature range is -40℃ to 85℃, and the short-circuit current is 19.2A, open-circuit voltage is 39.6V, with a peak power of 350W per square meter. The intelligent monitoring system has a built-in 7-day standby lithium battery, which can ensure normal operation of the monitoring system in case of power failure. The interface type supports RJ45 wired connection and 4G wireless connection, meeting different networking needs. The standard single panel size is 1200mm × 2000mm, and custom sizes can be provided according to project requirements.

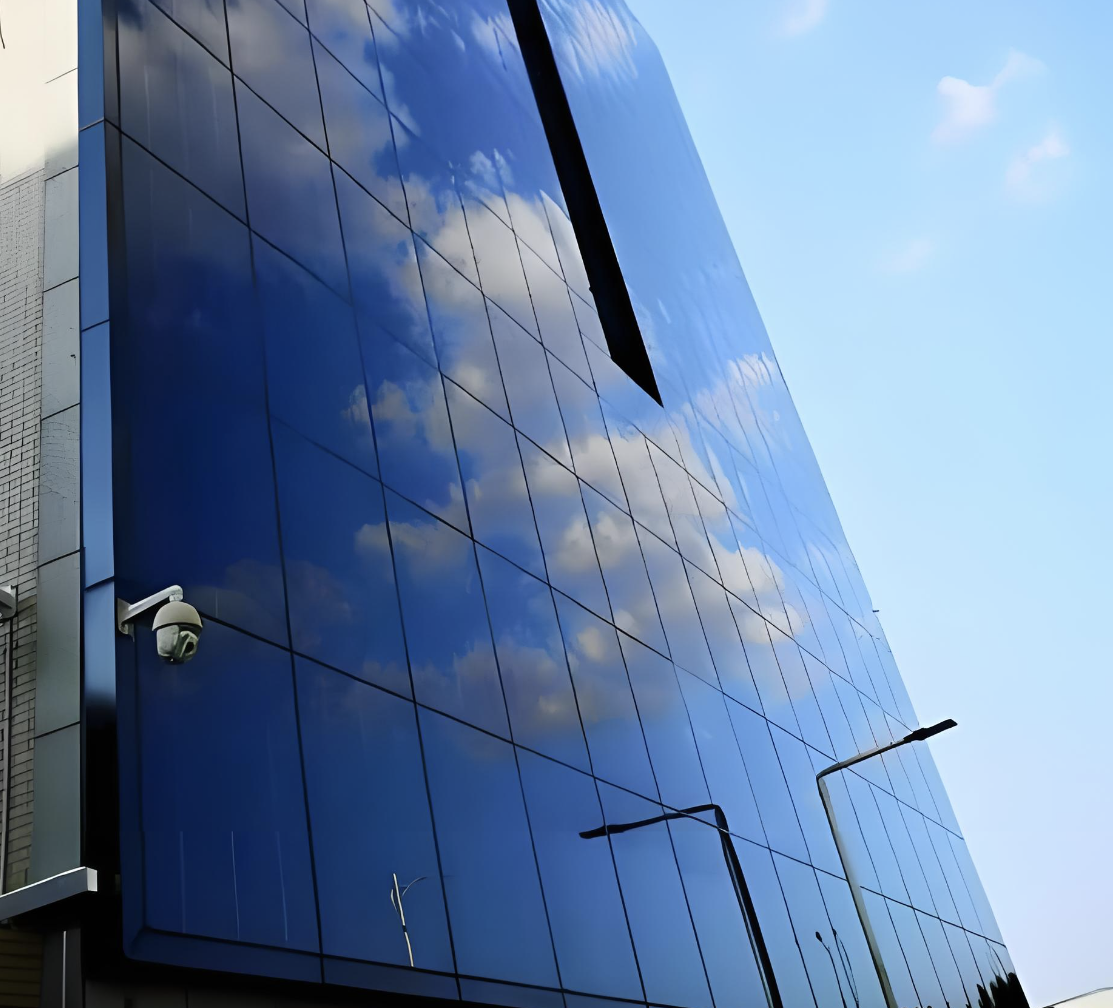

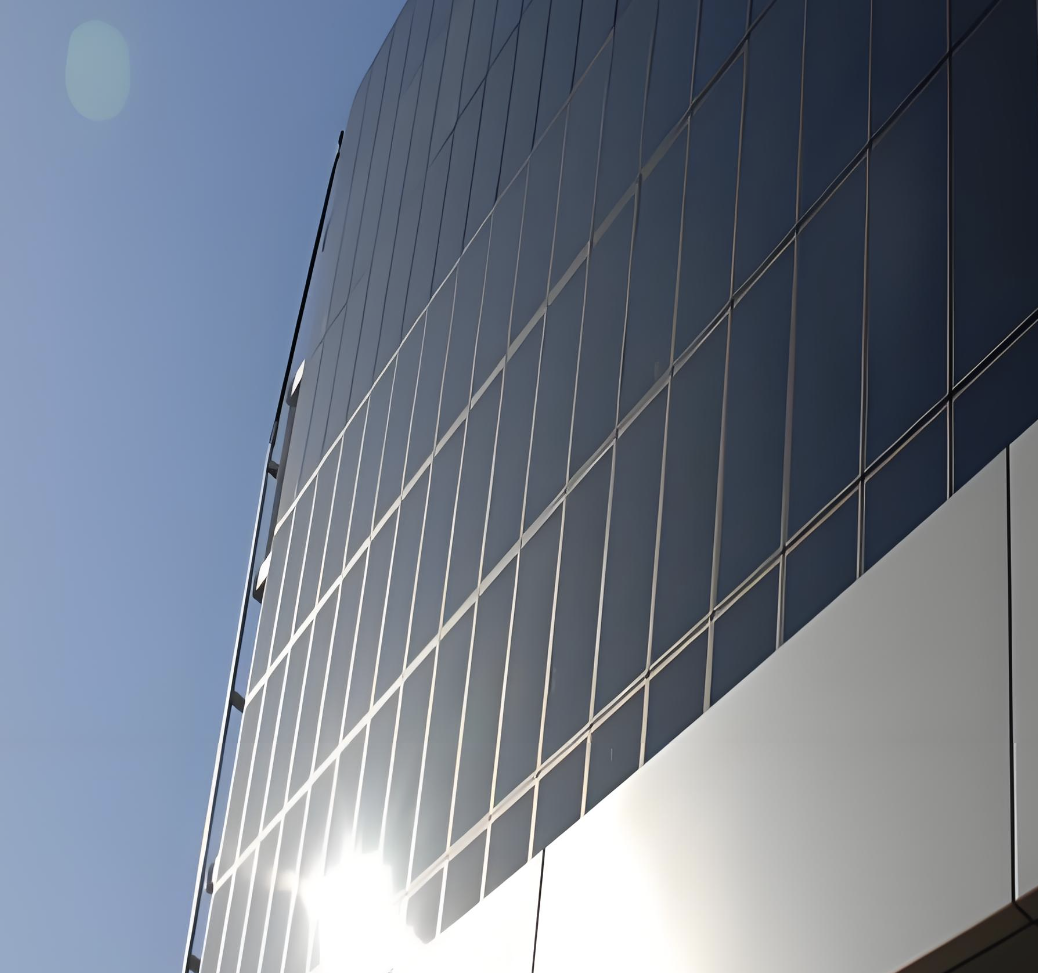

This smart monitoring BIPV photovoltaic curtain wall is suitable for high-end office buildings, data center machine room exterior walls, government office buildings, smart parks and other buildings with high requirements for intelligent energy management. It can provide clean power generation for the building, and the intelligent monitoring system can help managers master the power generation status of the building in real time, carry out fault maintenance in a timely manner, and reduce the operating costs of the building. It also meets the national green building certification standards, helping projects obtain relevant green building ratings and policy subsidies.
