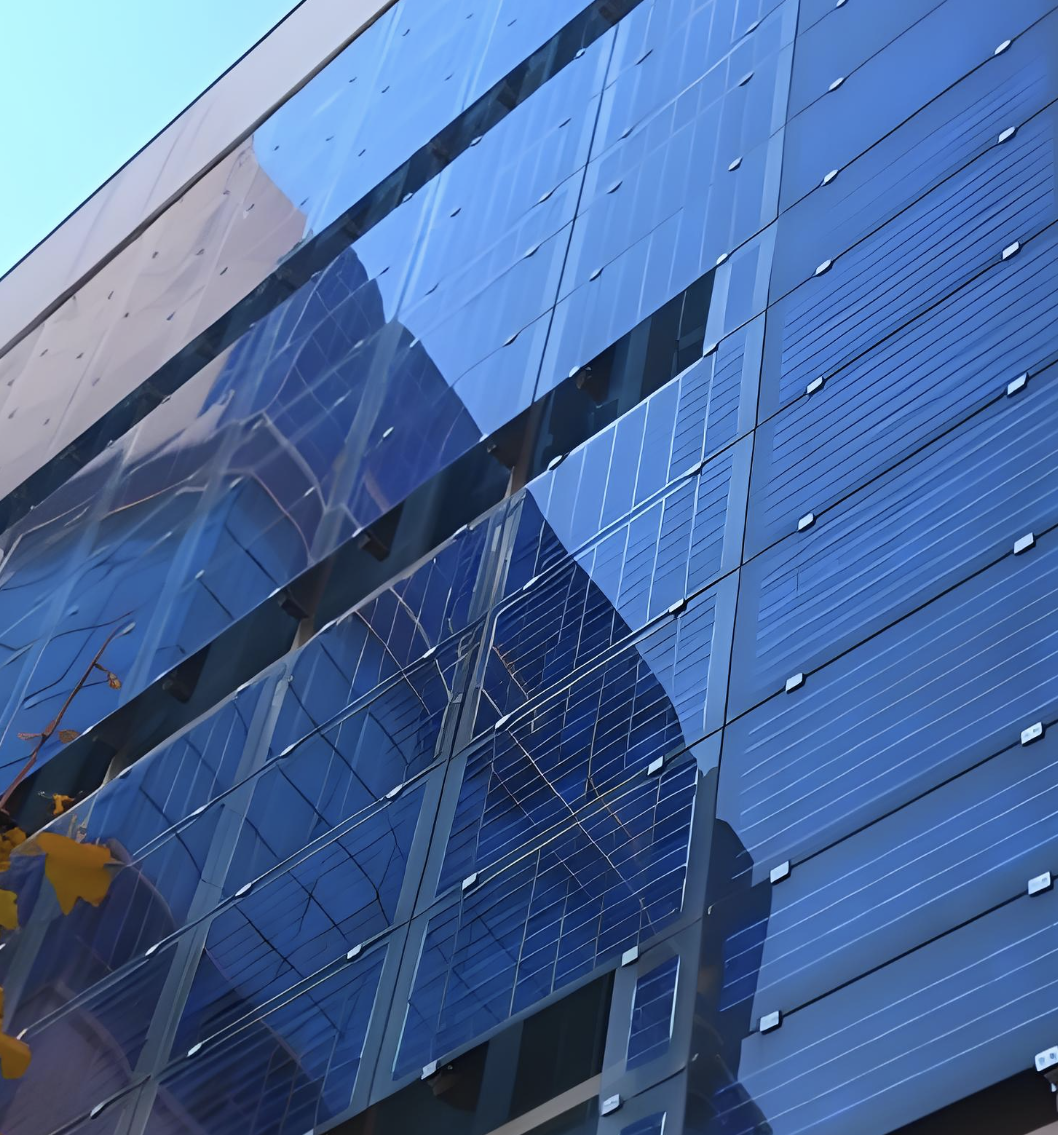

This product features modular clip-on installation, which greatly reduces on-site construction time and labor costs compared to traditional curtain wall installation. Equipped with 22.5% high-efficiency monocrystalline PERC photovoltaic modules, it boasts excellent power generation efficiency, and the ultra-white low-iron glass has a light transmittance of over 90%, ensuring good indoor lighting while maximizing solar energy absorption. With Class A fire resistance and IP68 waterproof rating, it can adapt to various harsh outdoor climatic conditions such as strong wind, heavy rain and extreme temperature changes. The built-in intelligent monitoring module can track the power generation status of each component in real time, providing fault warning and remote operation and maintenance functions, effectively reducing later maintenance costs and improving the overall operational efficiency of the building's energy system.
The overall panel thickness is 6mm + 1.52mm PVB + 6mm tempered glass, with a total weight of 18kg per square meter. The working temperature range is -40℃ to 85℃, and the short-circuit current is 18.2A, open-circuit voltage is 38.6V, with a peak power of 340W per square meter. The frame is made of 6063 national standard aluminum alloy, with a wall thickness of 1.4mm, which ensures stable structural strength and corrosion resistance. The standard single panel size is 1200mm × 2400mm, and custom sizes can be provided according to customer project requirements, meeting the design needs of different building exterior walls. It also supports integrated wiring design, which can be connected to the building's energy management system for unified scheduling of power generation and consumption.

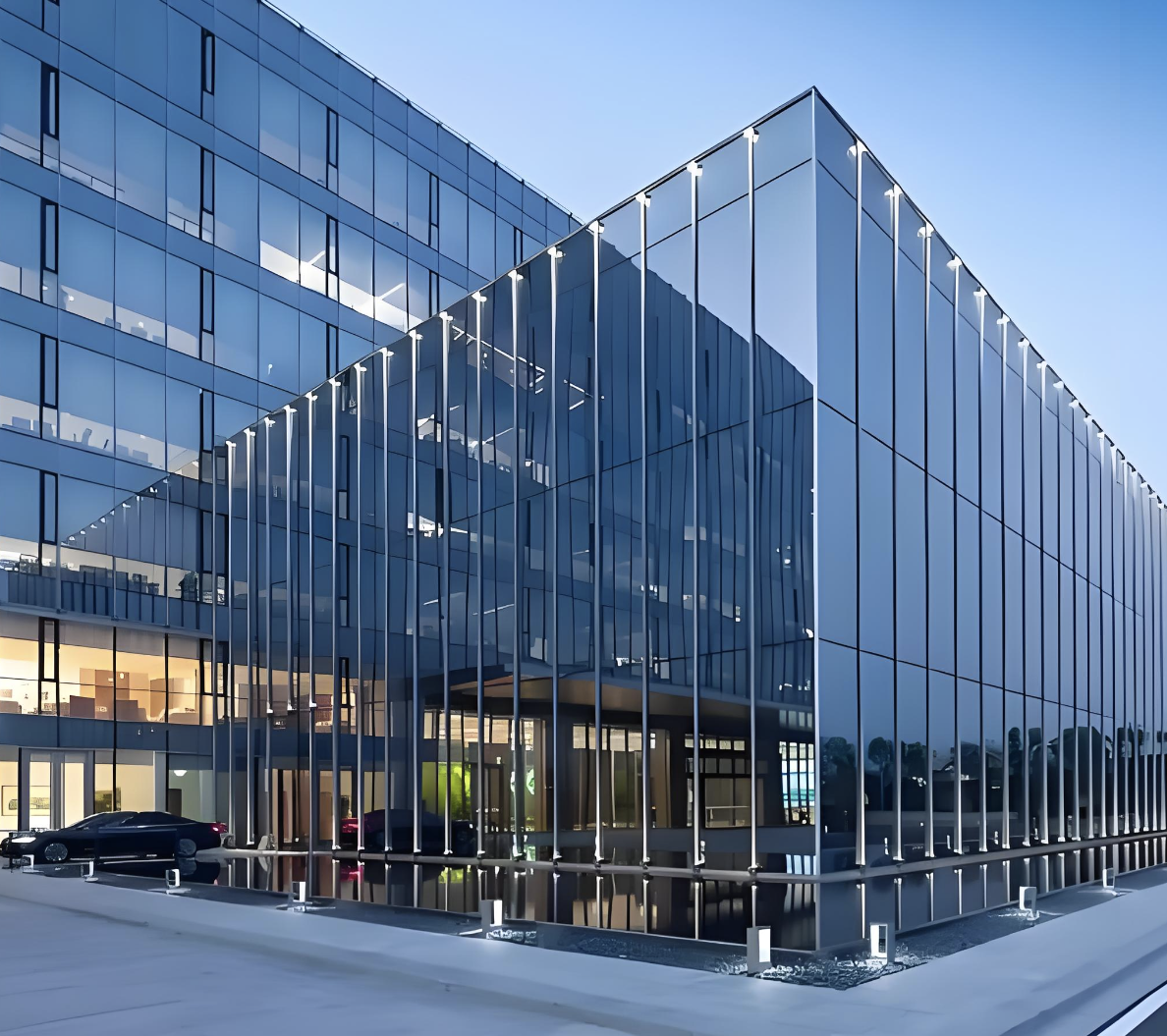

This double-glass BIPV photovoltaic curtain wall is suitable for a wide range of commercial and public building exterior walls, including high-end office buildings, data center machine room exterior walls, high-speed railway station halls, airport terminal buildings, and zero-carbon industrial parks. It can not only replace traditional decorative curtain walls but also provide clean electric energy for building internal lighting, air conditioning systems and other electrical equipment, helping building owners reduce energy costs and achieve the goal of green and low-carbon development. It is also compatible with the national green building certification standards, helping projects obtain relevant green building ratings and policy subsidies.
