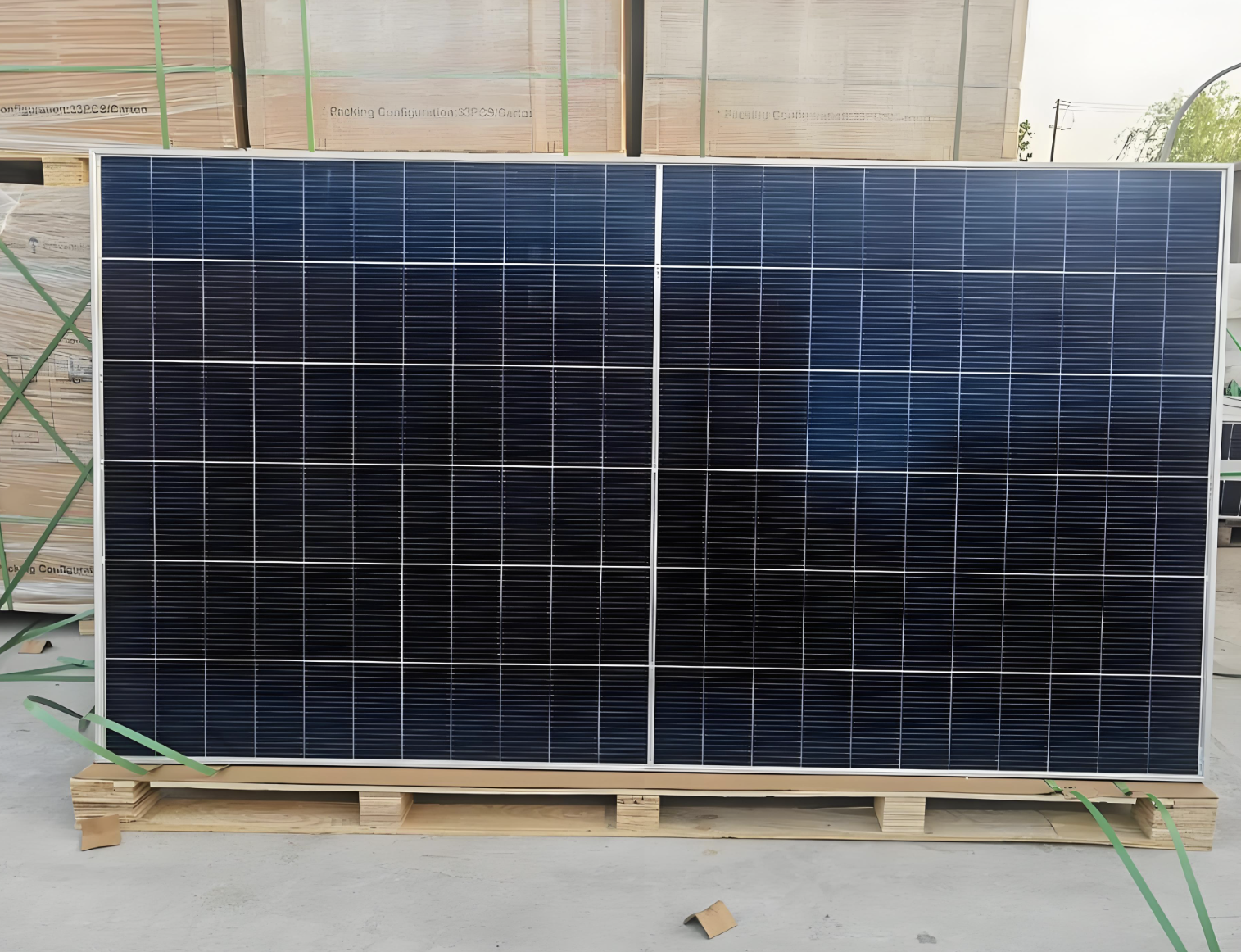

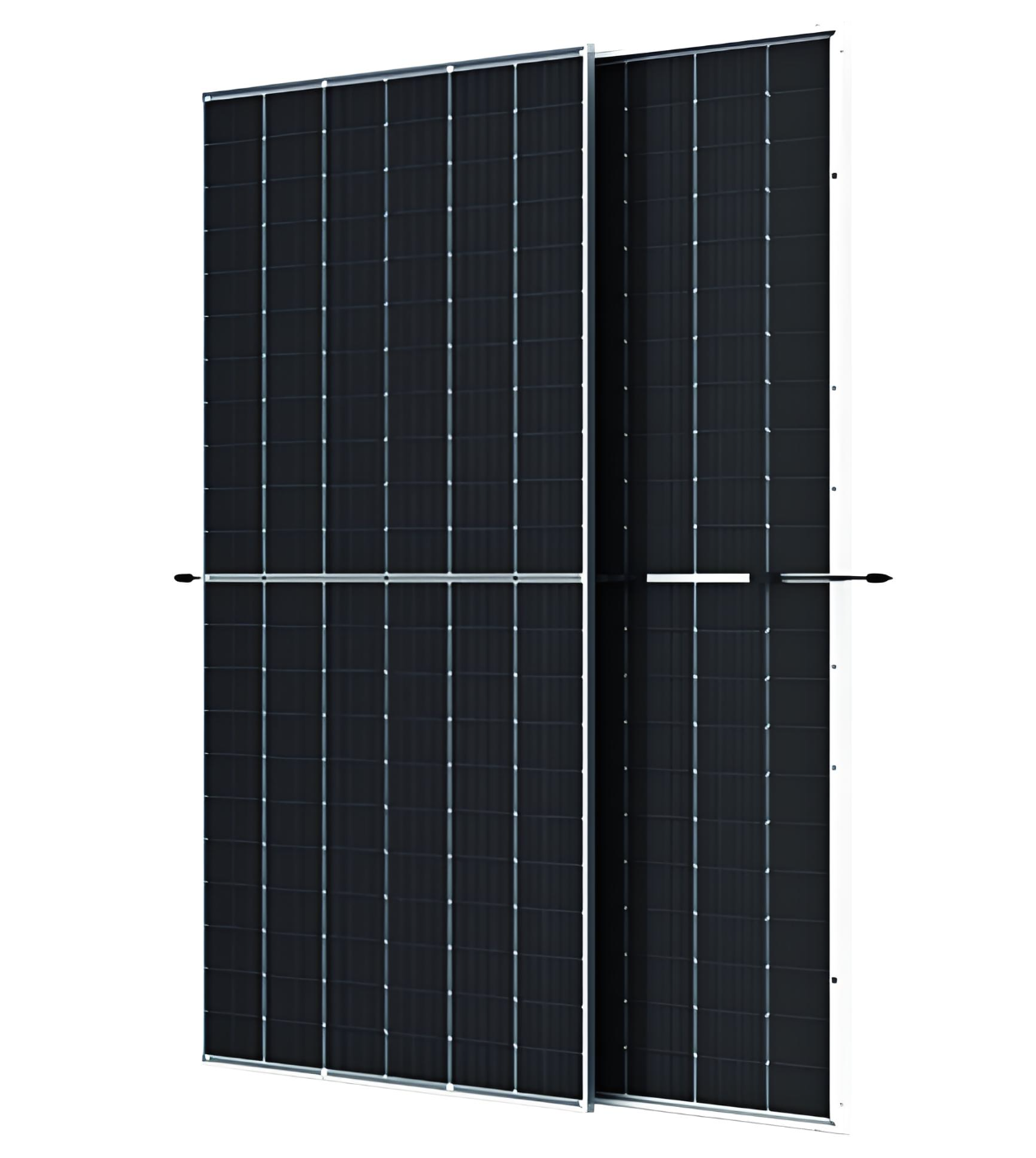

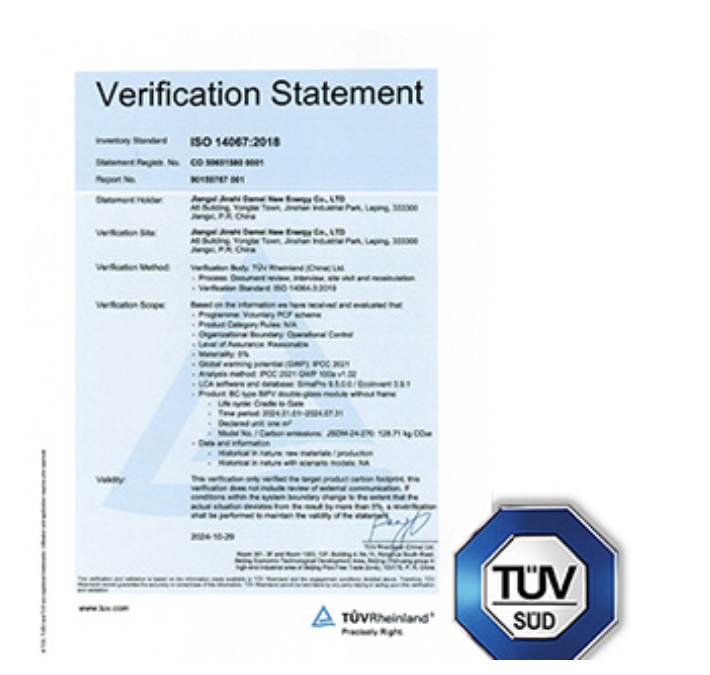

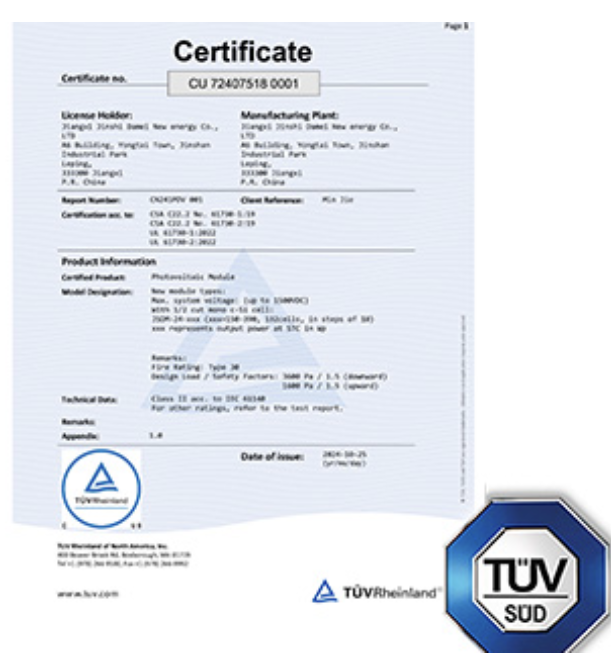

This crystalline silicon PV curtain wall adopts monocrystalline PERC cells, with a conversion efficiency of 22%-23%, which is 8% higher than traditional polycrystalline cells. The dry-hung installation system reduces on-site construction time by more than 30% compared with traditional wet glue construction. The integrated waterproof and heat insulation frame effectively blocks cold and heat bridge effects, reducing building heating and cooling energy consumption by 15%. It is designed for wind load resistance of high-rise buildings, capable of resisting level 12 strong winds, and has passed CE and TÜV international authoritative certifications. Compared with traditional glass curtain walls, it can generate about 200kWh of electricity per square meter annually, providing self-use power for buildings, reducing grid dependence and eligible for national green building subsidies.
Standard unit dimensions: 1200mm×2400mm, active area per unit: 1.8㎡, total thickness including aluminum frame and PV panel: 32mm, weight per square meter: 28kg, frame finish: powder coated, maximum wind pressure resistance: 2.5kPa, sound insulation rating: 35dB, solar conversion efficiency: 22%-23%, operating temperature range: -40℃~85℃, 25-year power output warranty, 10-year product warranty.
It is suitable for exterior wall enclosure systems of new large-scale commercial complexes, Class A office buildings and government public buildings, replacing traditional glass or stone curtain walls while realizing photovoltaic power generation benefits. It is especially suitable for commercial buildings in areas with sufficient sunshine, which can offset daily electricity costs through grid-connected power generation, in line with the global carbon-neutral building development trend and meeting the needs of projects that require both building appearance, structural safety and green energy demands.
