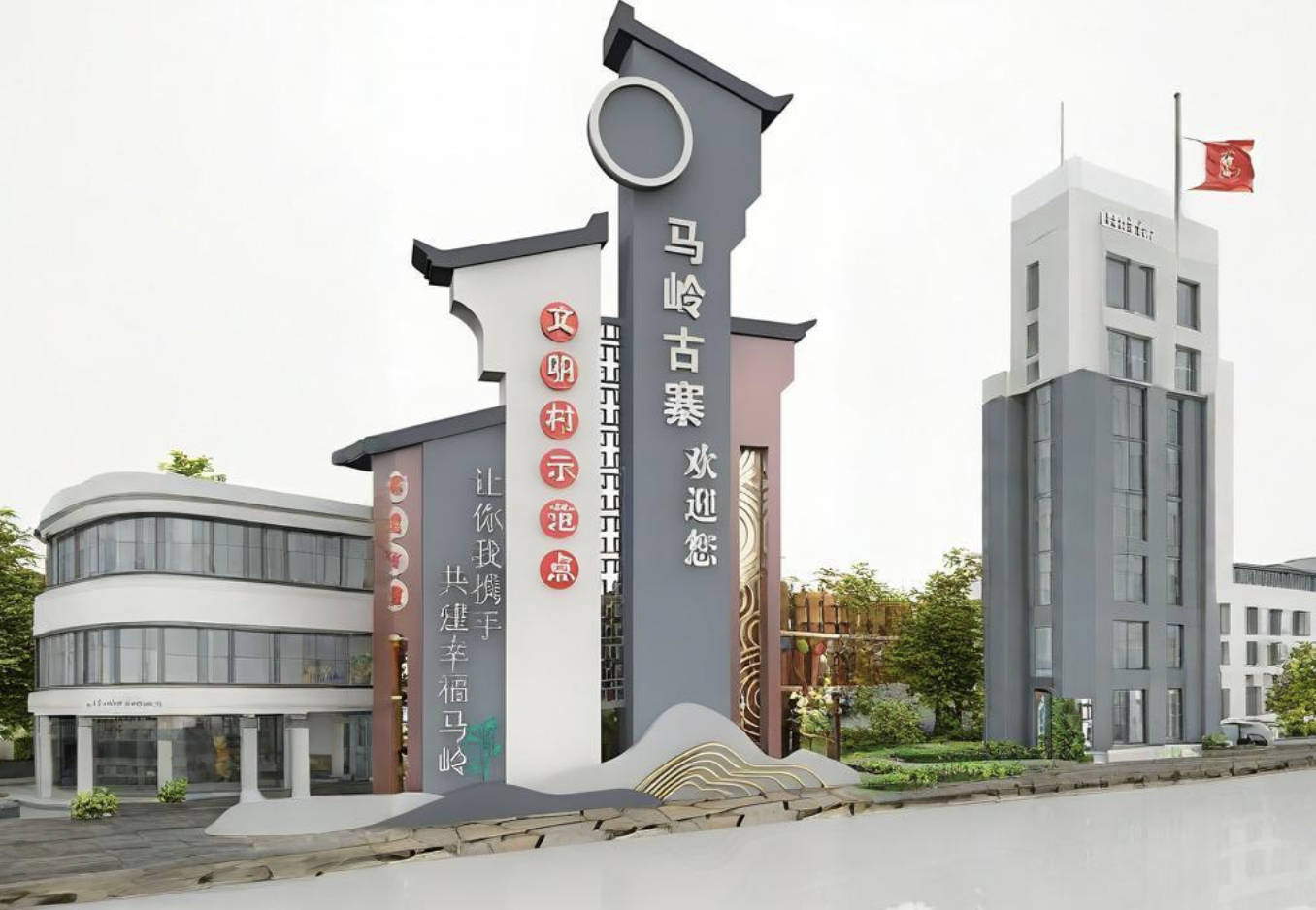

The core advantages of this sign lie in its customizability, modularity and solar energy application. The modular special-shaped profile splicing structure allows on-site assembly within 24 hours, reducing transportation costs and construction difficulty, and the modular components can be replaced separately, facilitating later maintenance and style updates. The 150W polycrystalline solar panel and 12V80Ah lithium iron phosphate battery provide stable power, supporting continuous lighting for over 5 days on cloudy and rainy days, with light-controlled automatic on/off to save energy. The dynamic LED subtitle screen can display real-time information such as rural revitalization policies, agricultural product sales and rural tourism activities, enhancing interaction with tourists and villagers. The 6061-T6 aluminum alloy material has excellent corrosion resistance, suitable for long-term outdoor use in rural areas, solving the problem of single style of traditional rural signs and creating a unique brand image for the village.
This sign has a height of 4-5m, with a main body width of 1.0-1.2m and a base size of 1.5*1.5m. The aluminum alloy profile wall thickness is 2.5mm, ensuring structural stability while reducing overall weight. The solar system includes a 150W polycrystalline panel with a conversion efficiency of ≥20%, paired with a 12V80Ah lithium iron phosphate battery that has a cycle life of ≥1500 times. The lighting system includes edge-lit LED strips with a brightness of 2500lm and a warm yellow color temperature of 3000K, plus a dynamic LED subtitle screen with a resolution of 320*160 and a brightness of 2000cd/㎡. It has a wind resistance grade of 11, weighing about 180-220kg, and uses a simple pre-embedded anchor bolt plus on-site modular splicing for installation, with an installation period of ≤24 hours. The surface is treated with 3 layers of fluorocarbon paint (custom rural theme colors: bamboo green/rice gold), achieving an IP65 waterproof rating, suitable for various rural outdoor weather conditions.

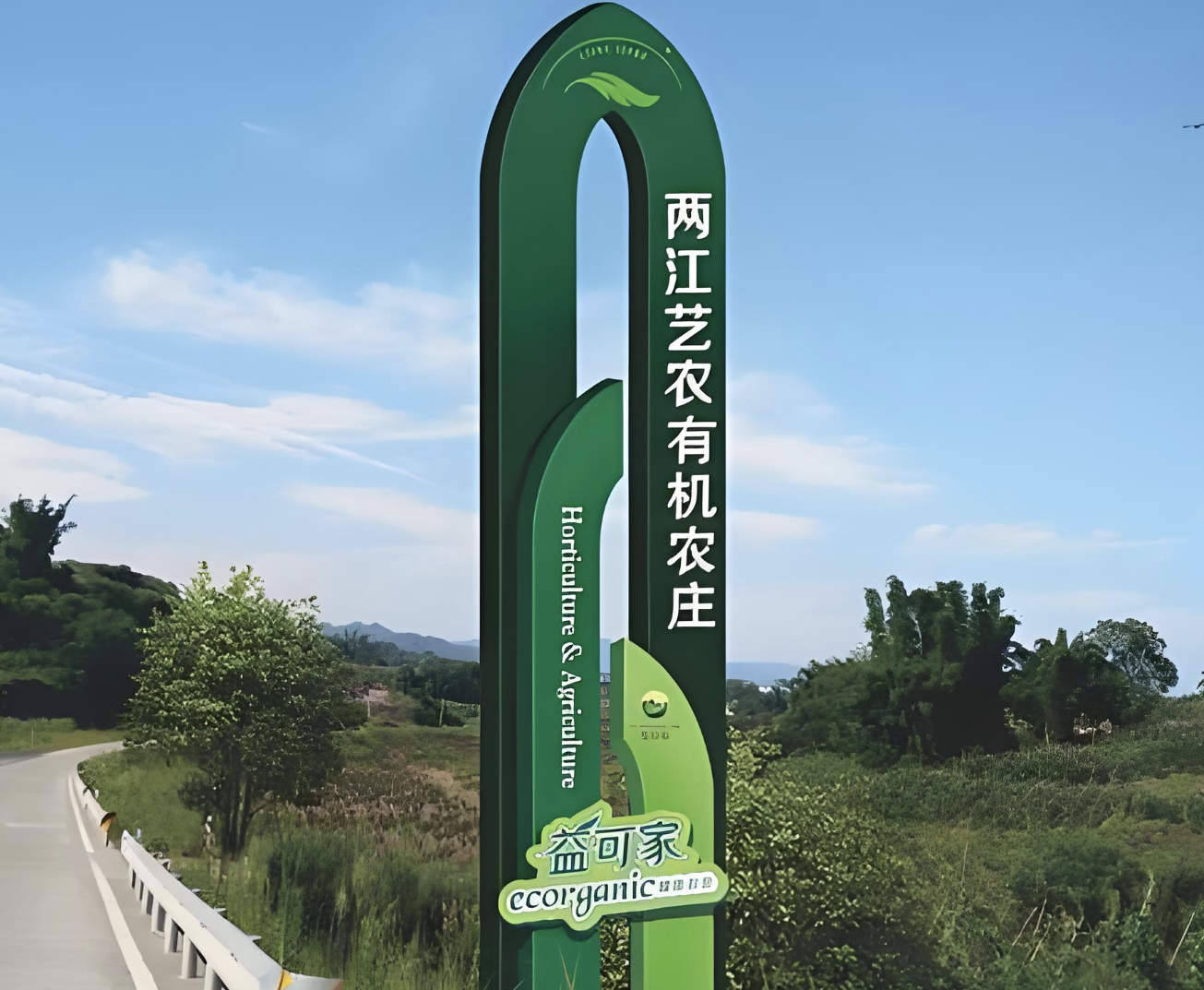

This sign is mainly applied to entrances of rural revitalization demonstration villages such as Anji White Tea Village in Zhejiang and rural areas around Daocheng Yading in Sichuan, core identification signs of rural complexes, entrance nodes of rural tourism scenic spots, and cultural display signs of characteristic agricultural villages. In these scenarios, the custom special-shaped design combined with local rural elements highlights the unique characteristics of the village, attracting tourists and promoting local agricultural products. The solar power system solves the problem of no municipal power supply in remote rural areas, while the dynamic LED subtitle screen provides a convenient information release channel for the village, helping to promote rural tourism and agricultural product sales, and contributing to the construction of rural revitalization brand image.
