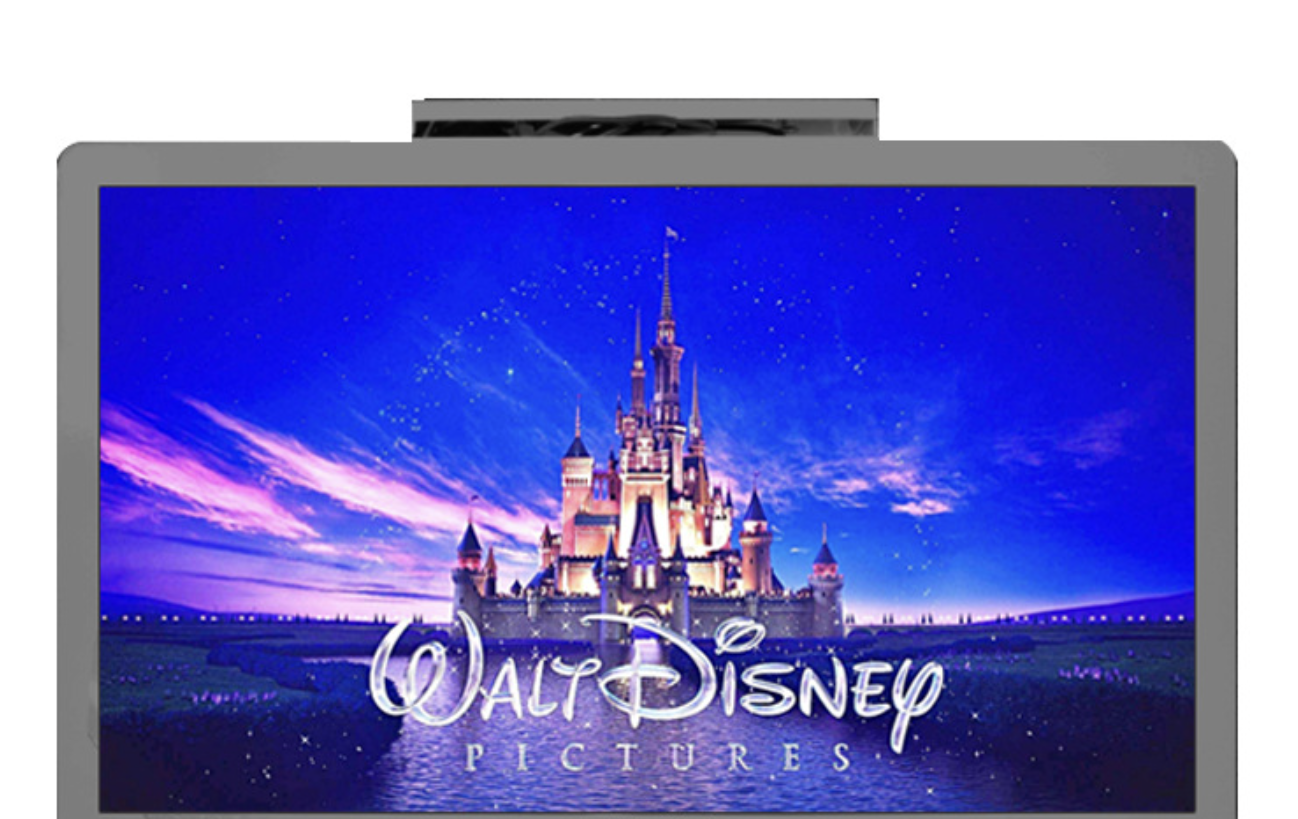

15.6-inch Vehicle-mounted LCD Monitor

Basic Info

A dedicated vehicle-mounted display device with wide-voltage and anti-vibration design, suitable for trucks, buses and other vehicle models. It supports high-definition video input, applicable to vehicle-mounted monitoring, entertainment and navigation scenarios.

Key attributes

Origin

China

Size

15.6 inches

Panel Type

TN

Resolution

1920×1080

Brightness

300cd/㎡

Contrast Ratio

1000:1

Interfaces

HDMI/AV

Backlight Type

LED

Material

ABS + Metal

Service Life

50,000 hours

Certifications

ISO16750/CE

Operating Voltage

DC9-36V

Vibration Resistance

10G

Customer reviews

Maximilian Schmidt · Electronics Engineer

The low-power consumption feature of your 2.4-inch segment LCD screen is amazing, which perfectly meets the needs of our electronic scale products. The TN panel ensures clear display, and the customized segments accurately present weight data. The IIC communication interface has simple wiring, which greatly simplifies the circuit design. The mass supply efficiency is high and the product consistency is strong, effectively reducing our production costs. It is the preferred display component for small household appliances.

Kairos Bowen · Outdoor Field Researcher

My outdoor phone is equipped with this 1500nit high-brightness screen. It delivers clear map viewing and data reading under the scorching midday sun in the desert, with far better visibility than ordinary screens.

Sophia Wang · Product Designer

We embedded your 7-inch embedded LCD dot matrix screens in our smart home control panels. The 800×480 resolution combined with IPS panels delivers delicate images and wide viewing angles. The 4SPI interface features simple wiring and strong adaptability. The backlight design ensures clear display even in dim environments. With low power consumption and a compact size, the modules perfectly meet the lightweight requirements of smart home devices, and the customization service is also very thoughtful.

Product Description

Product Features:

The wide-voltage input range of DC9-36V is compatible with 12V/24V vehicle-mounted power supplies,avoiding equipment damage caused by voltage fluctuations during vehicle operation.With a 10G vibration resistance rating,it can resist bumps and vibrations during vehicle driving,ensuring stable and flicker-free image display.It supports dual interfaces of HDMI and AV,compatible with vehicle-mounted monitoring hosts,DVD players and other equipment.The LED backlight has low power consumption with operating current≤3A,without increasing the burden of vehicle-mounted power supply.The screen features anti-reflective technology,eliminating glare during night driving and ensuring driving safety.Compact in size,it supports foldable/wall-mounted installation,adapting to the limited space of different vehicle models.

Product Specifications:

Display area:344.16×193.59mm;Pixel Pitch:0.181×0.181mm;Response Time:8ms;Viewing Angle:160°(H)/150°(V);Driver IC:ILI9806;Backlight Type:Edge-lit LED,6 lamp beads;Power Consumption:≤30W;Dimensions:360×210×25mm;Weight:1.2kg;Interfaces:HDMI×1,AV×1;Supported Video Formats:MP4,AVI,MKV,etc.;Operating Temperature:-10℃~50℃;Passes vehicle-mounted electromagnetic compatibility test with no signal interference to vehicle electronic systems.

Product Applications:

Suitable for trucks,it serves as a monitoring display to show real-time images around the vehicle body,reducing driving blind spots and improving driving safety.Used in buses,it functions as an entertainment screen to play movies and music,enhancing passenger travel experience.Applied in special vehicles such as fire trucks and ambulances,it displays navigation and task information to assist in efficient task execution.It can also be used in RVs as an audio-visual entertainment terminal,enriching travel life and improving the comfort of RV trips.

Frequently Asked Questions (FAQ)

Q：What is the wide voltage input range? Which vehicle power supplies is it compatible with?

A：The wide voltage input range is DC9-36V, which is perfectly compatible with 12V passenger car and 24V truck power supplies, avoiding equipment damage caused by voltage fluctuations.

Q：What is the vibration resistance rating? Is the image stable when the vehicle jolts?

A：The vibration resistance rating is 10G, with anti-bump and anti-vibration characteristics. When the vehicle is running at high speed or jolting, the image is still stable without flicker.

Q：What is the resolution? Does it support HD video input?

A：The resolution is 1920×1080, supporting HDMI HD video input, and the monitoring images and entertainment videos are displayed clearly.

Q：Is the screen anti-glare? Will it affect driving at night?

A：The screen is anti-glare treated, and the display brightness is soft at night, without glare, which will not affect the driver's line of sight.

Q：What are the installation methods? Which vehicle-mounted scenarios is it suitable for?

A：It supports foldable and wall-mounted installation, suitable for vehicle-mounted scenarios such as truck monitoring, bus entertainment and special vehicle navigation.

Q：How about the power consumption? Will it increase the burden of the vehicle battery?

A：The working power consumption is ≤30W, which is relatively low, and normal use will not increase the power supply burden of the vehicle battery.
