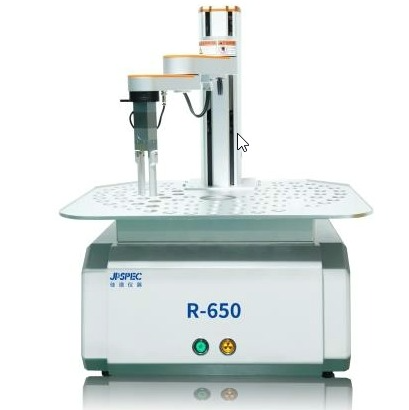

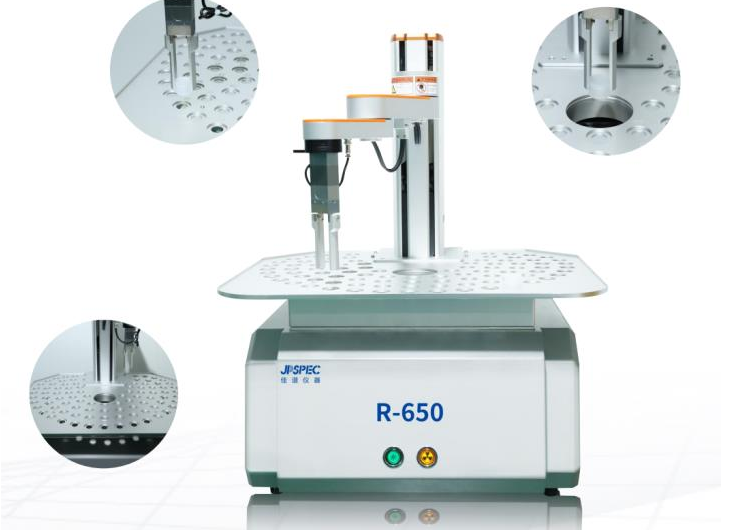

Adopting high-speed SDD detector technology, this machine automatically locates the detection position with the conveyor line matching structure, without manual sample placement. The test data is uploaded to the factory MES system in real time, and automatically generates compliance reports. It is equipped with an abnormal alarm function, which automatically triggers the sorting device when unqualified products are detected, solving the pain point that traditional sampling detection cannot cover all products.
Detector type: High-speed SDD detector; Excitation source: Dual-target X-ray tube; Tube voltage: 0-50kV; Tube current: 0-1200μA; Detection range: 1ppm-99.99%; Conveyor matching width: 0-600mm; Operating temperature: 10-40℃; Humidity: 30-60%RH; Protection rating: IP50; It supports docking with multiple mainstream industrial control systems and realizes full data traceability.
This product is applicable to home appliance manufacturing production lines, automotive electronic component production lines, electronic component batch production workshops, and packaging printing industry ink hazardous element detection. It realizes fully automated compliance testing throughout the production process, replacing manual sampling inspection, improving production efficiency and reducing compliance risks for large-scale manufacturing enterprises.
