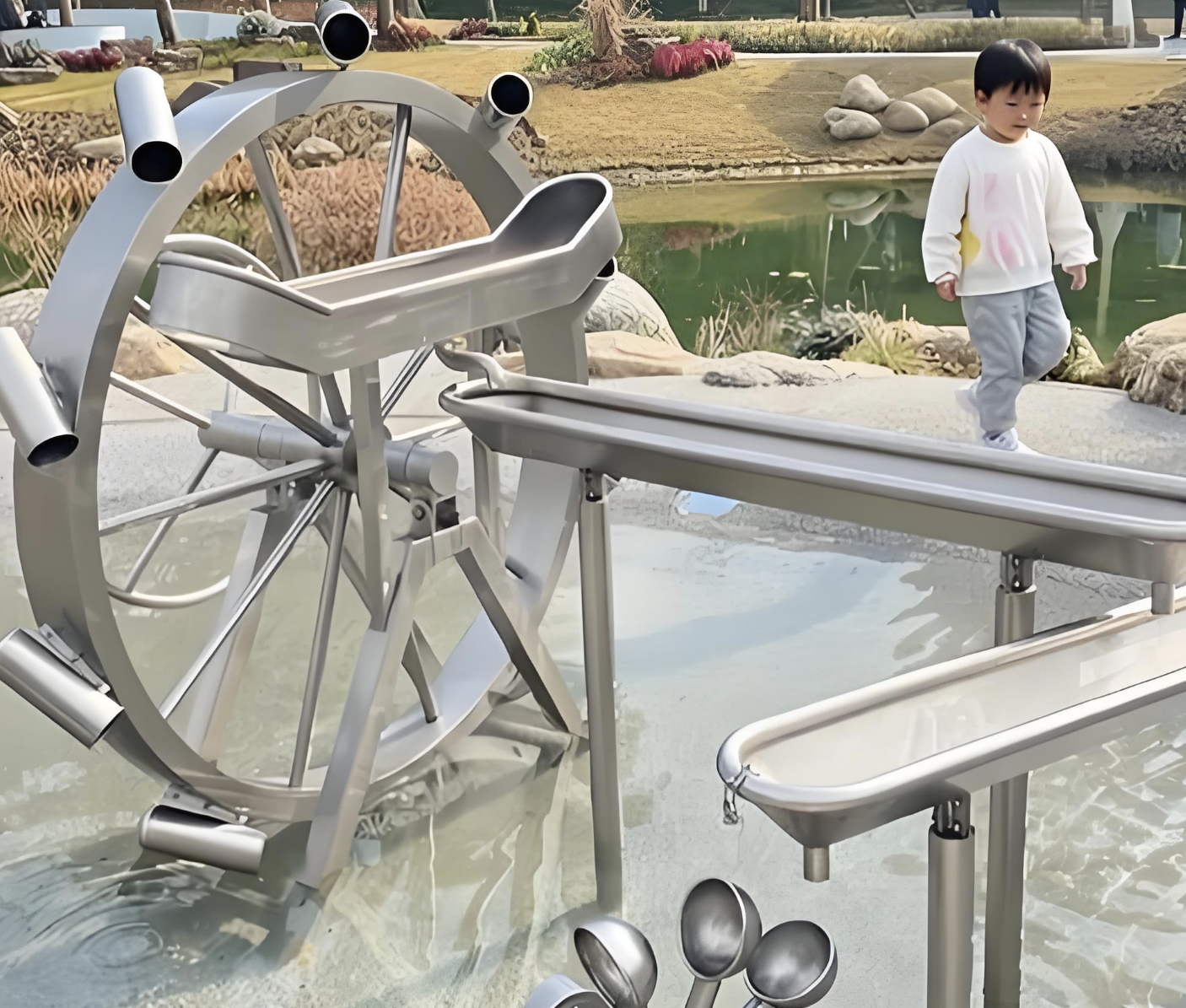

The main advantage of this water wheel is its durable and safe 304 stainless steel structure, which has excellent corrosion resistance and can be used in shallow pools or stream environments for a long time without rusting or deforming. The pedal-driven system is designed with adjustable resistance, suitable for children of different ages: young children can use light resistance mode, while older children and parents can choose higher resistance to increase the fun of exercise. It offers multiple interactive modes, including single-person, double-person, and 4-person versions, which can meet the needs of individual play, parent-child interaction, and group play of children. The water wheel is equipped with large-capacity water buckets, which can scoop a large amount of water each time, forming a obvious spraying effect when rotating, attracting children's attention and enhancing the interactive experience. The surface of all components is polished to be smooth and burr-free, eliminating the risk of scratching children's skin. Additionally, it supports electric upgrade: adding a low-power motor can realize automatic rotation of the water wheel, reducing the physical consumption of children and extending their play time. The product also supports custom color coating, which can be matched with the theme of the venue to enhance the overall aesthetic effect.
The diameter of the water wheel ranges from 0.8 meters to 2 meters, with a width of 40cm to 80cm, adapting to different venue scales and user numbers. The main body is made of 304 stainless steel plates with a thickness of 2mm-3mm, and the water buckets are made of 1.5mm thick stainless steel, with a capacity of 1.5L-5L per bucket, and the number of buckets ranges from 8 to 16. The pedal system consists of non-slip pedal pads (made of rubber material, thickness 10mm) and a stainless steel rotating shaft, with a rotation ratio of 1:2 (each pedal rotation drives the water wheel to rotate half a circle). The maximum load capacity of the 4-person version is 400kg, supporting 4 children or 2 adults and 2 children playing simultaneously. For the electric upgrade version, a 0.3kW waterproof motor is equipped, with a rotation speed of 5-10 rpm, supporting continuous operation for 8 hours. The total weight of the 0.8-meter single-person version is about 65kg, while the 2-meter 4-person version weighs about 180kg. The applicable water depth is 0.3-0.8 meters, and it requires a fixed installation with expansion bolts or direct placement on a flat pool bottom. All components are treated with anti-rust spray coating, which can resist salt water corrosion and is suitable for coastal venue use.

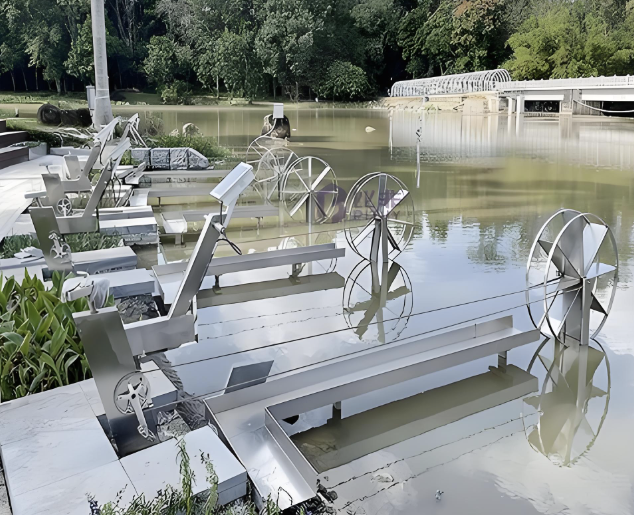

This multi-person pedal water wheel is widely used in various water play venues. In amusement park water zones, it can be placed in shallow water areas, combined with water slides, spray facilities, and sand pools to form a comprehensive water play area, attracting a large number of family tourists and increasing the popularity of the venue. In children's sand-water areas of community parks or outdoor camps, it provides a fun water play option for children, allowing them to experience the fun of driving water flow while playing with sand. In research study bases, it can be used as a practical teaching tool to teach children about the principles of mechanical transmission and water flow, combining entertainment with science education. It is also suitable for water parks, resort hotels' children's activity areas, and kindergarten outdoor play zones, providing a safe and interesting water play experience for children. For venues with parent-child activity themes, the 4-person version can be used as a parent-child competition facility, holding pedal water wheel races to enhance the interactive fun of the activity. Additionally, it can be customized with logo printing, becoming a promotional tool for the venue's brand image.
