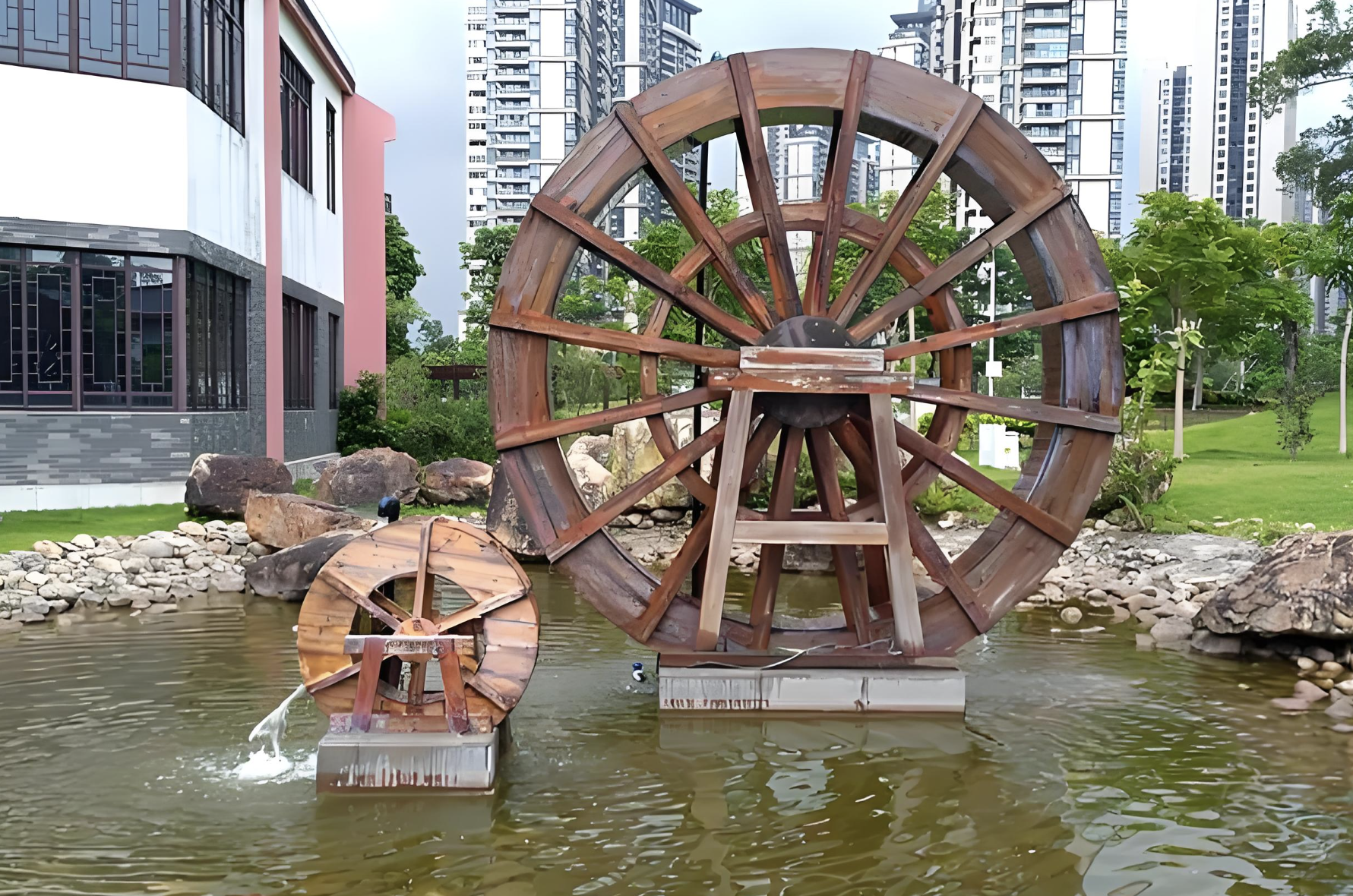

The core advantage of this landscape group is its integration of cultural heritage and interactive experience, solving the problem that traditional scenic facilities lack interactivity and cultural connotation. The linked water wheel design uses a synchronous transmission system to ensure that the large and small wheels rotate at the same speed, forming a harmonious water flow effect. The anti-corrosion wood structure is treated with ACQ anti-corrosion agent, which can resist termite erosion and moisture damage, and has a service life of up to 20 years. The electric drive system uses a waterproof motor with IP68 rating, which can operate stably in water environments, and supports timed start-stop and speed adjustment functions. The product is equipped with a safety fence around the water wheel area to prevent visitors from getting too close, while also providing a clear observation angle. In addition, it supports custom landscape matching, such as rockeries, artificial streams, and aquatic plants, to form a complete water landscape system. The product also includes a cultural display board to introduce the history and principles of traditional water wheels, enhancing the educational value of the facility.
The large water wheel has a diameter of 2-8m and a width of 0.8-1.5m, with 12-24 wooden water buckets, each with a capacity of 10-20L. The small water wheel has a diameter of 1-4m and a width of 0.6-1m, with 8-16 wooden water buckets. The main structure uses ACQ-treated anti-corrosion wood with a moisture content of ≤12%, and the galvanized steel support frame has a diameter of 80mm and a wall thickness of 3mm. The hydraulic drive mode requires a water flow rate of 0.5m³/h to 2m³/h, and the electric drive mode uses a 1.5-3kW waterproof motor with a rotation speed of 3-5rpm. The safety fence is made of 304 stainless steel, with a height of 1.2m and a gap of 11cm to prevent children from getting through. The product has a total weight of 2500kg to 8000kg, depending on the size, and requires a pre-cast concrete foundation with a depth of 1.2-2m. It meets the ASTM F2373 standard for scenic amusement facilities, with all edges rounded to avoid sharp protrusions. The product comes with a 2-year warranty for core components and a 5-year warranty for the main structure.
This mother-and-child water wheel landscape group is suitable for high-end cultural tourism scenarios, including garden-style amusement parks, cultural tourism resorts, wetland parks, historical and cultural scenic spots, and urban ecological parks. In garden-style amusement parks, it can be placed in the cultural theme zone to form a traditional cultural experience area with other facilities such as ancient-style pavilions and stone bridges, attracting tourists interested in traditional culture. In cultural tourism resorts, it can be placed in the leisure zone to provide a tranquil and cultural scenic view for visitors to rest and take photos. In wetland parks, it can be integrated into the wetland landscape zone to form an ecological water landscape system with natural streams and aquatic plants, enhancing the ecological value of the venue. Typical use cases include daily scenic decoration, cultural exhibition activities, traditional culture research study courses, and tourist check-in spots. It is suitable for operators such as cultural tourism resort managers, wetland park administrators, and historical scenic spot management companies.
