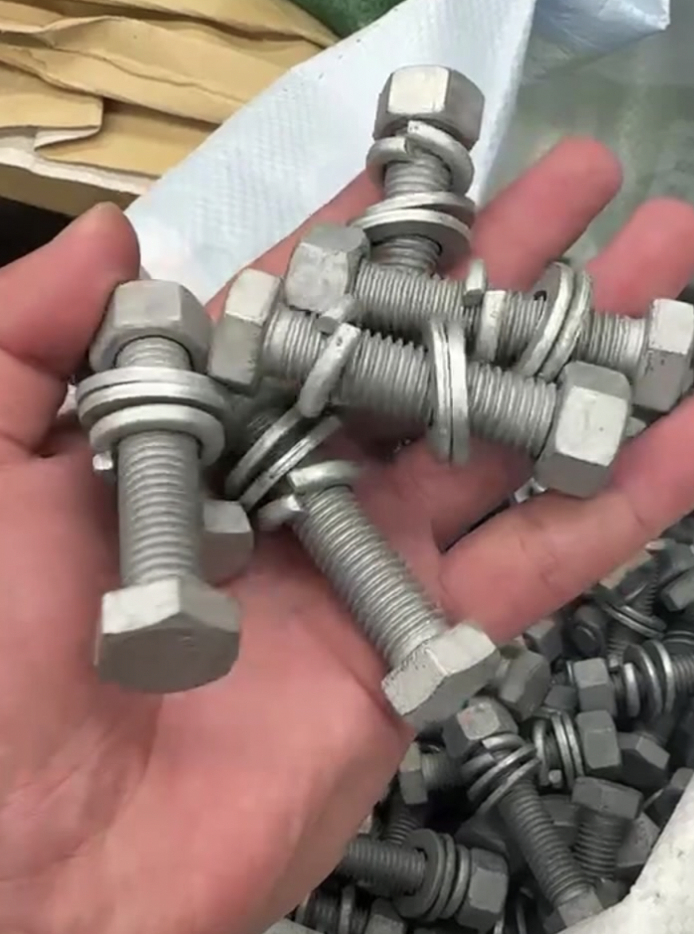

This grade 8.8 carbon steel PV bolt offers multiple distinct advantages for solar mounting applications. First, its 8.8 strength grade delivers a tensile strength of 800 MPa, meeting the load requirements for most residential and small-to-medium commercial solar projects, ensuring stable fixation even under moderate wind and snow loads. The hot dip galvanized surface treatment provides superior corrosion resistance, passing a 500-hour salt spray test without visible rust, extending the service life of the fasteners to align with the 25-year typical lifespan of solar systems. The hex socket drive design allows for precise tightening with standard socket wrenches, minimizing installation errors and reducing the risk of bolt slippage during assembly. The coarse metric thread ensures smooth threading into pre-drilled holes, avoiding thread jamming and improving overall installation efficiency. Additionally, each bolt undergoes strict dimensional inspections to ensure compatibility with standard PV mounting hardware, eliminating the need for on-site custom modifications.
This PV mounting bolt has a comprehensive set of standardized specifications for wide applicability. The diameter range covers M6 to M12, with available lengths from 30mm to 150mm to fit different racking thicknesses and foundation installation depths. The hexagon head has a standard width across flats matching corresponding socket wrench sizes, ensuring a proper tool fit during installation. The thread follows the ISO metric coarse thread standard, with pitches ranging from 1mm for M6 bolts up to 1.75mm for M12 bolts, ensuring secure engagement with matching nuts. The hardness ranges from HRC 28 to 32, balancing strength and toughness to avoid bolt breakage during tightening operations. Each batch of bolts is inspected for dimensional accuracy, thread quality, and corrosion resistance, with a tolerance level of IT6 to ensure consistent performance across all units. The bolts are packaged in sealed plastic boxes to prevent surface damage during transportation and storage, maintaining their performance until installation.
This hot dip galvanized carbon steel PV bolt is primarily designed for residential and small-to-medium commercial solar panel mounting systems. It is suitable for roof-mounted PV installations on asphalt shingle, metal, and concrete roofs, as well as ground-mounted rack systems using concrete piers or steel piles. The bolt can be used to secure solar panel racks, cross beams, and rail components to the foundation, providing stable fixation for solar arrays with a capacity of up to 500kW per installation site. It is compatible with most mainstream PV mounting hardware brands, including aluminum alloy and steel racking systems. Installation workers can use standard socket tools to quickly tighten the bolts, reducing on-site labor time by approximately 15% compared to non-standard fasteners. This bolt is not recommended for coastal high-salt environments, as its corrosion resistance may not meet the long-term requirements of such harsh conditions, making it ideal for inland and low-corrosion atmospheric installation scenarios.
