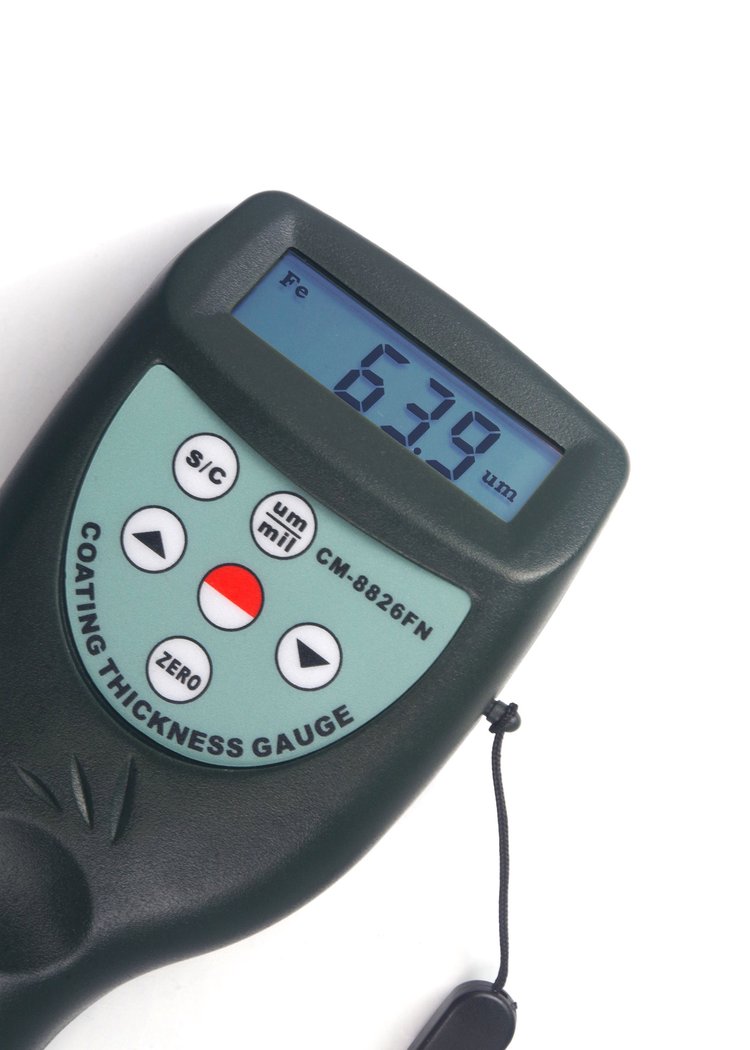

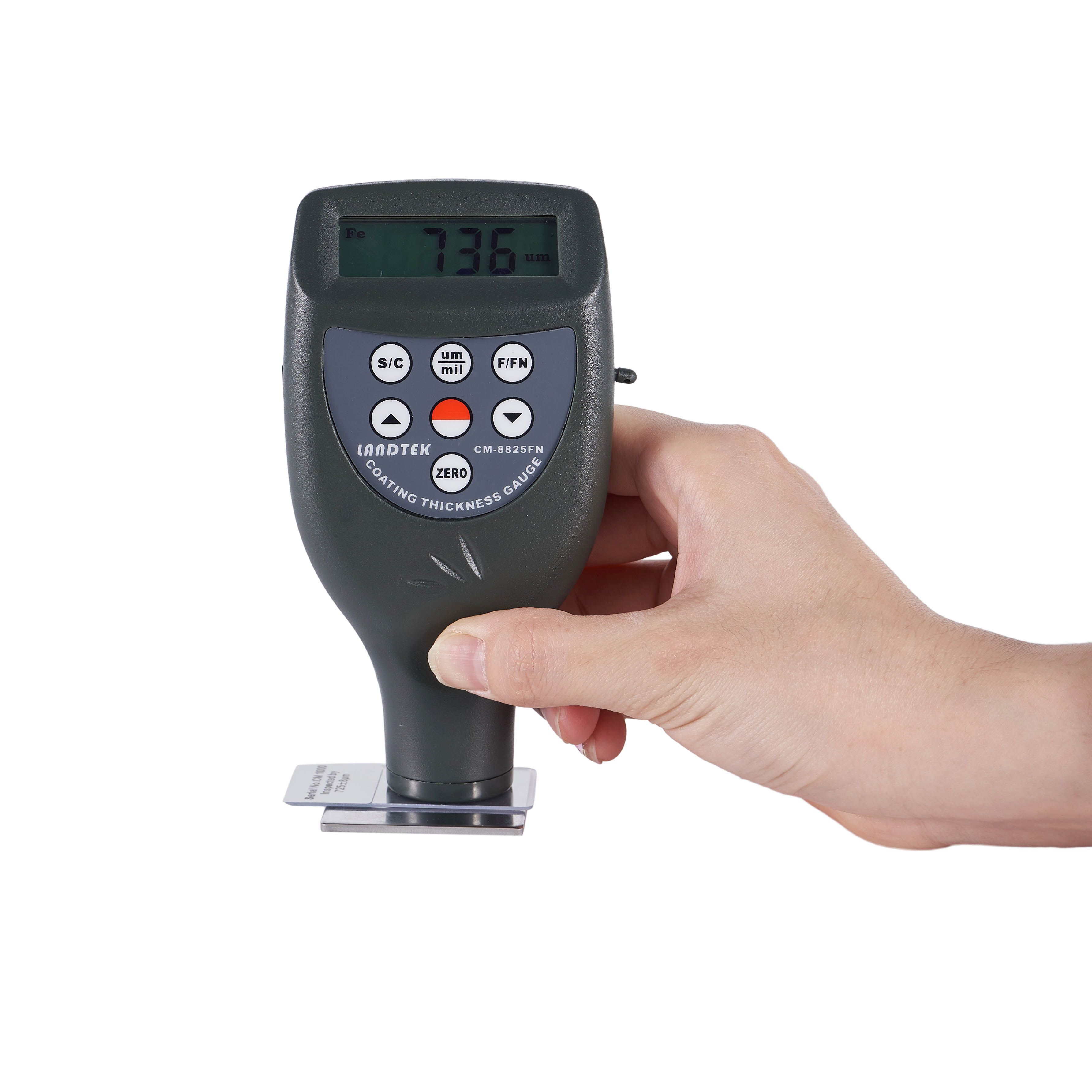

This detector focuses on the detection of coating thickness, with ultra-high detection accuracy of ±0.01μm, meeting the testing requirements of ultra-thin precious metal plating layers. It supports one-key detection, and can obtain coating thickness data in 1-3 seconds, improving the efficiency of production quality control. The anti-slip ABS housing is comfortable to hold, and is suitable for long-term operation in the production workshop. It has passed CE and RoHS certification, ensuring environmental friendliness and safety. It supports data export via Type-C interface, facilitating the management of production quality data.
The overall dimensions of the tester are 120mm × 60mm × 30mm, with a net weight of 180g, easy to hold in one hand for operation. The 2-inch OLED screen provides clear display in dark or low-light environments. The 1500mAh lithium battery supports 15 hours of continuous working on a single charge, and can be fully charged within 1.5 hours via the Type-C interface. The built-in magnetic induction sensor has a detection range of 0.1μm-100μm coating thickness, and can automatically identify the type of plating layer and calculate the thickness. It meets CE and RoHS certification standards, with no radiation hazard and safe to use.
This coating thickness tester is suitable for jewelry processing factories to test the thickness of gold and silver plating layers on the surface of jewelry, for hardware accessory manufacturers to conduct quality control of electroplating products, and for electronic component manufacturers to test the thickness of precious metal plating layers on circuit board contacts. It can effectively control the quality of plating layers, reduce the waste of precious metal materials, and ensure the consistency of product quality.
