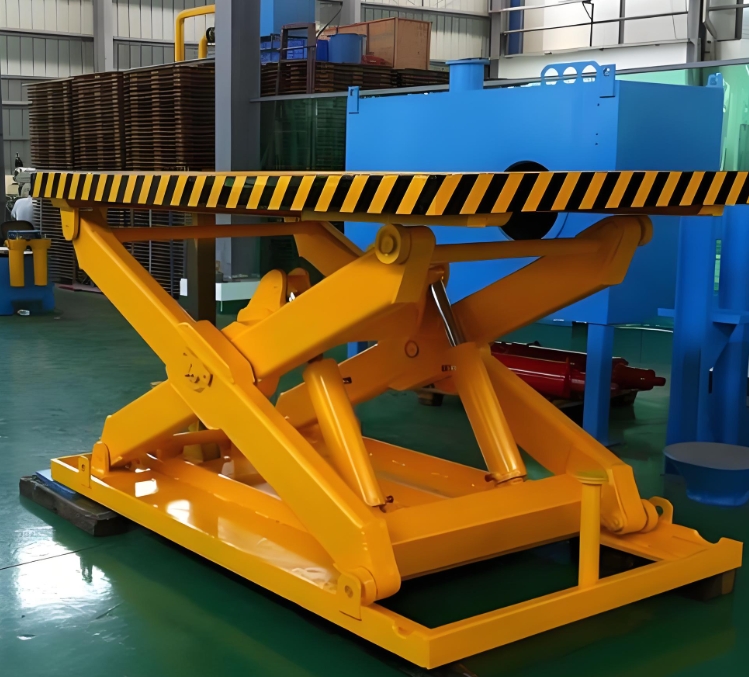

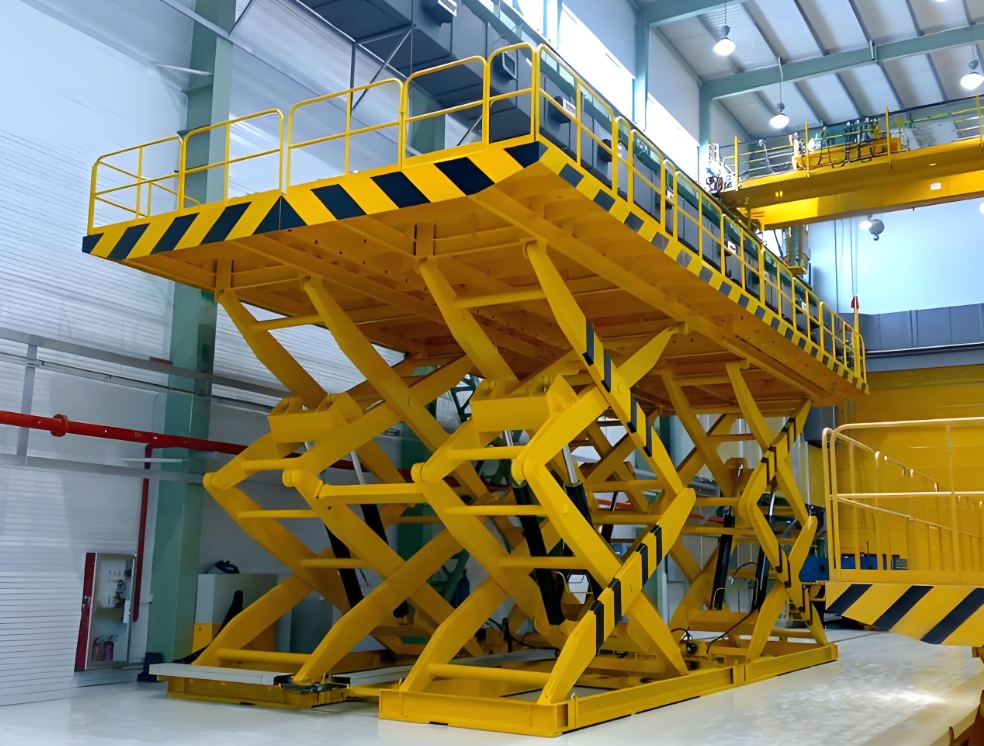

The double scissor synchronous lifting structure ensures that the platform remains水平 without tilt during operation. The double pump explosion-proof hydraulic system improves operation safety, and the PLC intelligent control system can achieve accurate parking. The adjustable support legs improve the stability of outdoor operation, and the modular design facilitates later maintenance. Compared with single scissor lifts, this model has higher load capacity and better stability, meeting the needs of heavy-duty material handling.
The scissor hydraulic cargo lift has a maximum lifting height of 6.0 meters, rated load capacity of 3000kg, and platform dimensions of 2500mm in length and 1800mm in width. The extended length of the scissor is 3.2 meters, and the whole machine weighs 5800kg. The hydraulic system working pressure is 18MPa, and it supports PLC programming control and wireless remote control. It is equipped with an audible and visual overload alarm system, and the adjustable support legs have an adjustment range of ±50mm to adapt to uneven ground.
This scissor lift is widely used in high-level shelf replenishment of large warehouses, large equipment transfer in intelligent manufacturing workshops, heavy-duty material vertical lifting in heavy industry production, and large-tonnage cargo transfer in logistics sorting centers. It is suitable for large manufacturing bases, cross-regional logistics parks and other scenarios requiring heavy-duty vertical lifting.
