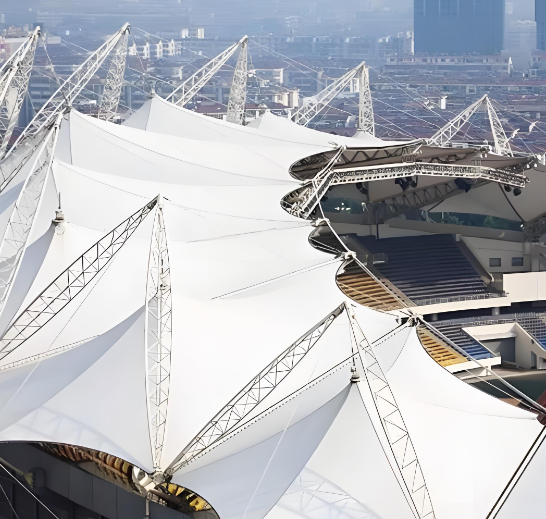

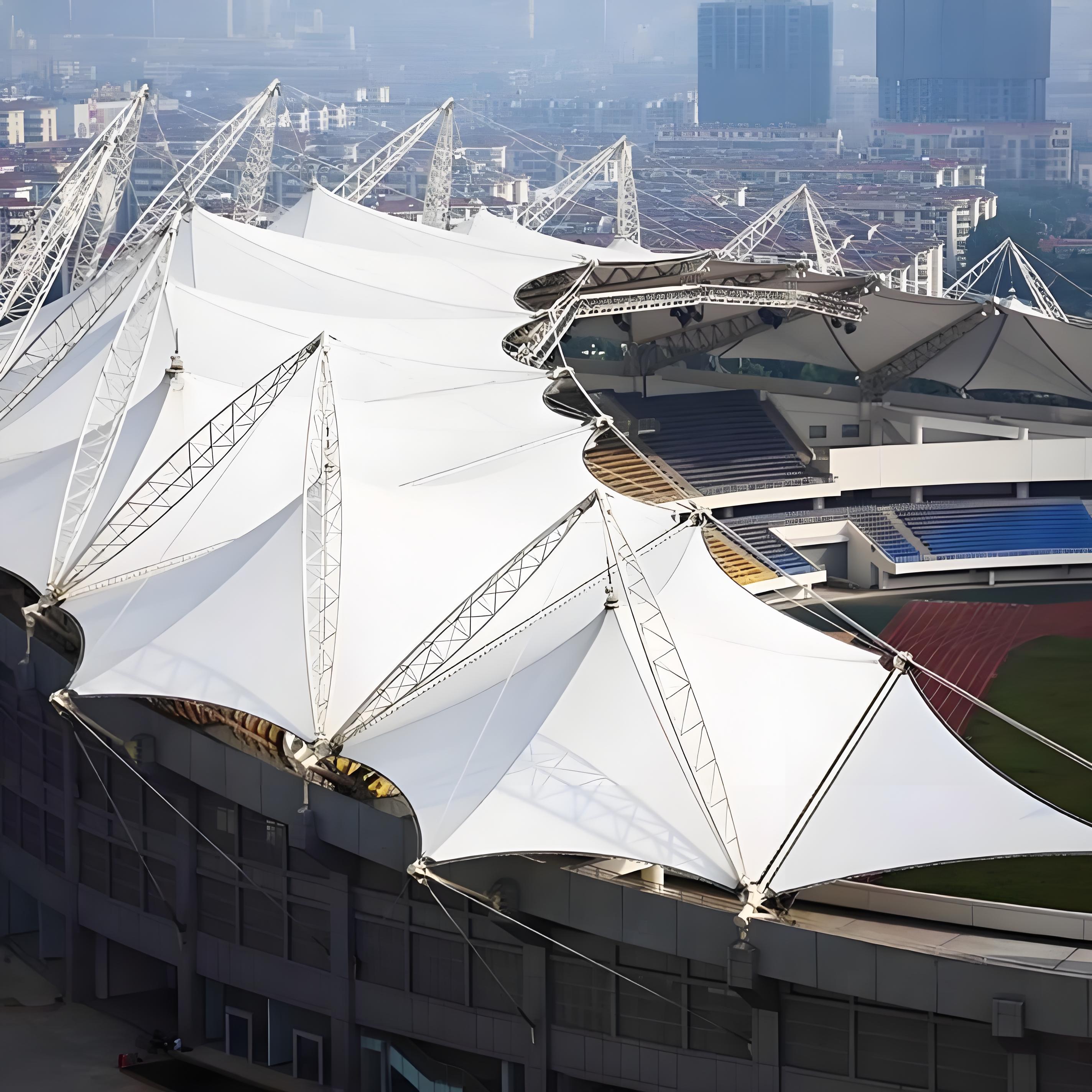

The core technical highlights of this stand include high-strength load-bearing and professional event matching. The PTFE fiberglass membrane material meets the NFPA 701 flame retardant standard, which has excellent fire safety performance, and can resist high temperature and corrosion for a long time. The high-strength galvanized steel truss frame has a load-bearing capacity of up to 2000kg per square meter, which can meet the needs of large-scale audience groups. The built-in professional lighting system adopts energy-saving LED lamps, which can adjust the brightness according to the scene needs, and the sound insulation pad can effectively reduce the noise generated by the audience and improve the viewing experience. The modular design of the stand allows for flexible combination and layout, which can adapt to different event site sizes and shapes, and can be disassembled and reused after the event, reducing the waste of resources.
The overall size of this large-scale stand is 30m in length × 8m in width × 4.5m in height. The single-row seat spacing is 70cm, and the single seat width is 50cm. The truss frame has a section size of 120mm × 120mm and a wall thickness of 4.0mm. The thickness of the PTFE membrane material is 1.0mm, with the tensile strength of 6500N/5cm in the warp direction and 5800N/5cm in the weft direction. The total self-weight is about 1200kg. The supporting professional lighting system includes 20 sets of 100W LED floodlights, and the sound insulation pad has a thickness of 10mm, which can reduce noise by 25dB. The complete product set includes truss frame components, membrane components, lighting systems, sound insulation pads and installation drawings.
It is mainly applicable to large-scale outdoor sports events such as football matches, track and field competitions, large-scale music festivals, commercial art performances, outdoor exhibitions and other activities. The target industries include sports event planning, cultural tourism performance, commercial exhibition and other fields. It is suitable for large-scale event organizers, stadium rental operators and municipal cultural and sports departments, which can provide high-grade viewing facilities for large-scale audiences and meet the professional needs of large-scale events.
