The feature of this LED lightbox system is its magnetic modular design, which allows users to assemble custom-sized displays by snapping together standard 50*50cm modules—no tools or screws required. This reduces setup time by up to 70% compared to traditional framed lightboxes. Each module features a magnetic acrylic panel, enabling tool-free content updates, so users can switch out graphics between events in seconds. The quick-connect power cables automatically align and lock into place when modules are joined, eliminating the risk of loose connections or electrical issues. The stepless dimming system allows users to adjust brightness from 0% to 100%. The lightweight aluminum alloy frame (each module weighs only 3kg) makes it easy to transport and assemble by a single person, reducing labor costs for event setup. Additionally, the modular design allows for easy replacement of individual modules if damaged, rather than replacing the entire display.

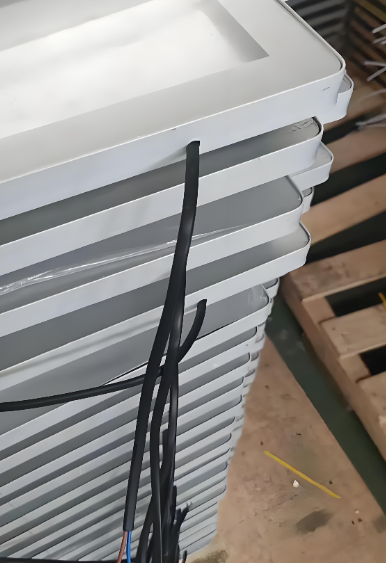

This magnetic modular LED lightbox system consists of standard 50*50cm modules, each with a 20mm-thick aluminum alloy frame and a 5mm magnetic acrylic panel. Each module uses SMD2835 LED chips with a luminous flux of 4800lm/㎡ and a color rendering index (CRI) of ≥85, delivering uniform, bright illumination across the entire assembled display. The modular power supply operates on 110-240V AC, supporting up to 16 modules (4x4 configuration) with a single driver. The magnetic connection system has a pull force of 10kg per module, ensuring a secure, stable assembly. Each module has a lifespan of 50,000 hours, providing long-term use for multiple events. The lightbox supports both wall-mounted and free-standing installation, with optional support frames available for larger displays. The operating temperature range is -10℃ to 40℃, making it suitable for indoor events and covered outdoor venues. The total weight of a 2x2 module set is 12kg, and it comes with a portable carrying case for easy transportation. The stepless dimming system is controlled via a remote control, allowing users to adjust brightness from up to 10 meters away.
This magnetic modular LED lightbox system is designed for event planners, marketing agencies, trade show exhibitors, and retail brands looking for flexible, portable display solutions. It is ideal for trade show booths, where quick setup and teardown are critical, and pop-up stores, where custom-sized displays are needed to fit temporary retail spaces. Typical use cases include creating backlit brand walls at corporate conferences, building modular product displays at consumer electronics shows, setting up promotional booths at music festivals, and creating temporary signage for grand opening events. The modular design allows users to scale the display size from a single 50*50cm module to a 200*200cm 4x4 configuration, making it adaptable to small booth spaces and large exhibition halls alike. The tool-free assembly and content update features are particularly beneficial for businesses that participate in multiple events per year, as they reduce setup time and labor costs. Additionally, it can be used in retail stores for temporary seasonal displays, such as holiday promotions or new product launch events.
