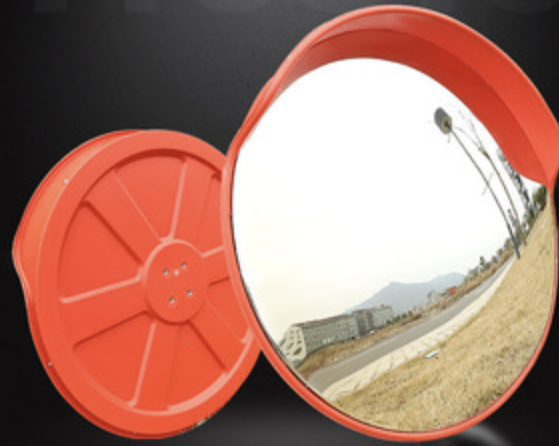

This convex mirror features a 3mm thickened PC mirror surface, which is shatterproof and can withstand impacts from heavy vehicle debris or strong winds without cracking, ensuring continuous safety monitoring even in extreme weather conditions. The fiberglass reinforced plastic (FRP) backing is lightweight yet highly durable, resisting corrosion from rain, snow, and UV radiation, with a service life of up to 10 years. Its IP66 protection grade guarantees complete waterproof and dustproof performance, making it suitable for use in coastal areas with salt spray or desert areas with heavy dust. The 140° wide viewing angle covers a large road section, helping drivers detect incoming traffic at wide intersections and highway entrances in time. The pole-mounted installation method allows for flexible height adjustment, adapting to different road heights and traffic flow requirements. It complies with ISO9001 and ASTM standards, ensuring quality and safety compliance for large-scale municipal procurement projects.

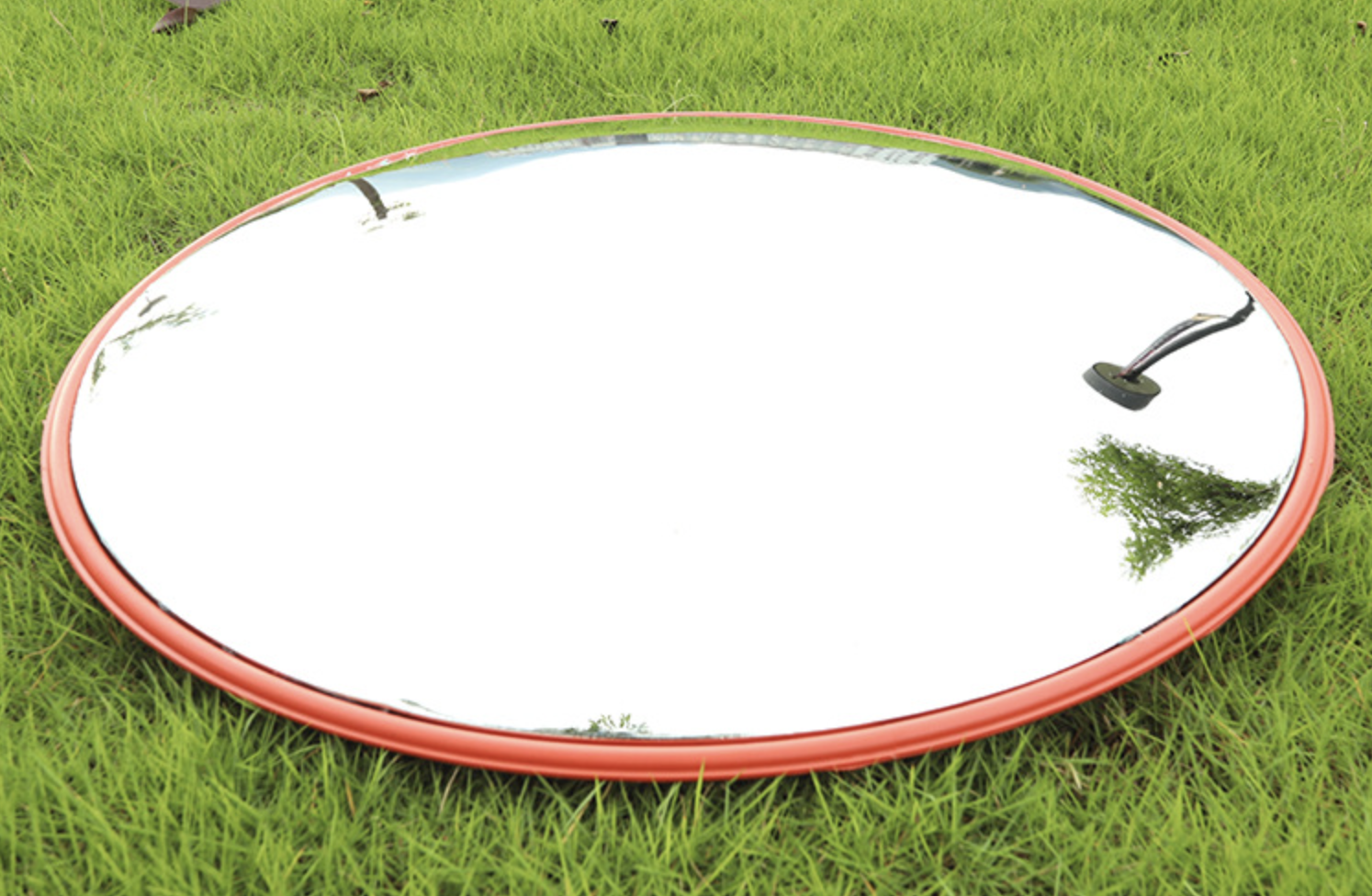

The mirror has an outer diameter of 120cm, with a 3mm thickened PC mirror surface that provides exceptional impact resistance and image clarity, avoiding distortion caused by strong winds. The FRP backing is 5mm thick, offering robust structural support while keeping the total net weight at 18kg, making it easy to install with standard road poles. The viewing angle is fixed at 140°, which is optimized for wide intersections to cover multiple lanes of traffic. It is compatible with standard 6-inch road poles, with a mounting bracket that allows 360° angle adjustment. The product meets IP66 protection standards, meaning it can withstand heavy rain, snow, and dust storms. The working temperature range is -35°C to 75°C, adapting to extreme cold and hot climates. The mirror surface is treated with a UV-stabilized coating, preventing yellowing and fading after long-term exposure to sunlight. Its service life is 10 years under normal outdoor use, with minimal maintenance required.
This large-size convex mirror is a core equipment for municipal road improvement projects, especially for wide intersections with heavy traffic flow, where it can help drivers detect incoming traffic from multiple directions, reducing collision risks and traffic congestion. It is also suitable for highway entrances and exits, helping merging drivers monitor main road traffic flow and improve merging safety. For large outdoor parking lots in shopping malls or airports, it can be installed at parking lot entrances and internal intersections to help drivers detect blind spots and reduce vehicle collisions. Additionally, it can be used in port terminals and logistics parks, where it monitors heavy truck movements and reduces collision risks between trucks and loading equipment. In mountainous areas with steep slopes, it is installed at hairpin curves to help drivers detect oncoming traffic and improve driving safety.
