The core advantage of this curtain wall is its combination of decorativeness and practicality. It uses 6063 aviation-grade aluminum alloy, which is light in weight and not easy to rust. The powder-coated surface has strong weather resistance and can withstand extreme outdoor weather. Different from the single decorative attribute of ordinary curtain walls, it produces natural sound through staggered wind chime tubes under the action of wind, alleviating the sense of oppression of high-rise urban buildings. At the same time, the dry hanging installation method does not require on-site welding, reducing the construction period and safety risks. It can customize the arrangement density and tube length according to the building shape, adapting to various facade shapes such as arc and straight lines.
The size of a single panel is 1200mm×800mm, with 36 aluminum alloy wind chime tubes with a diameter of 25mm and a length of 600mm per square meter. The overall installation thickness is 120mm, and the weight of a single panel is about 12kg. The fire rating reaches Class A non-combustible, and the wind resistance grade is Grade 12 (corresponding to 120km/h wind speed). The surface coating thickness is ≥60μm, with anti-ultraviolet and acid rain corrosion resistance, and it is suitable for extreme temperature environments (-40℃ to 80℃).

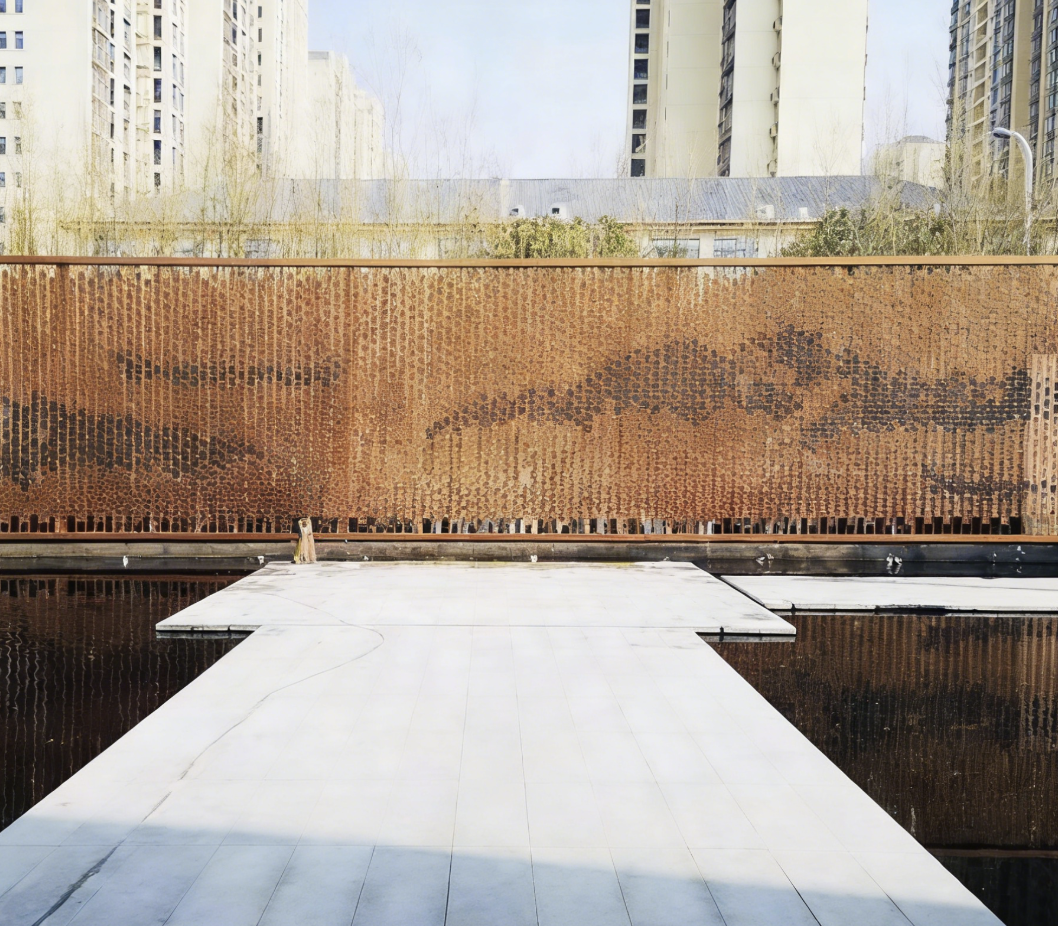

It is mainly applicable to the facades of high-rise office buildings, commercial complexes, chain brand flagship stores, and landscape walls of urban public squares. In hot summer, its soft wind chime can relieve the irritability of passers-by, and the modern visual shape meets the aesthetic needs of urban renewal projects. At the same time, the dry hanging installation mode is convenient for later maintenance, and a single wind chime tube can be replaced separately, reducing later operation and maintenance costs, suitable for projects that need to create characteristic landscape buildings.
